1U 144FO Rack

High density unique design patch panel, with maximum LCconnecting & cabling, adopt thehigh-strength environmental light weight material andsuperior surface treatment technique, which make thepanel achieved complete function and various flexiblecabling solution.

Download Annex

Product Detail

1U/144F LC/72F SC 1U/288F MDC(2ports adapter) 1U/432F MDC (3ports adapter)

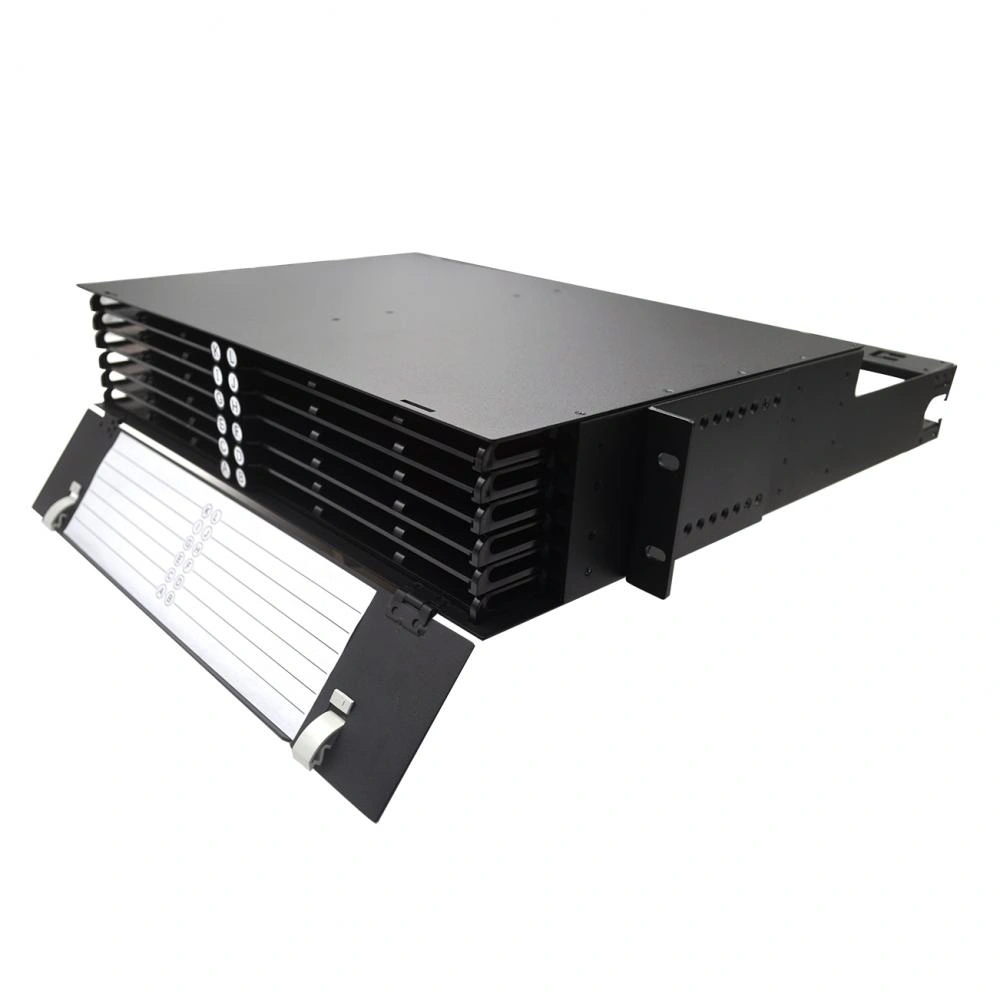

2U/288F LC/144F SC 2U/576F MDC(2ports adapter) 2U/864F MDC (3ports adapter)

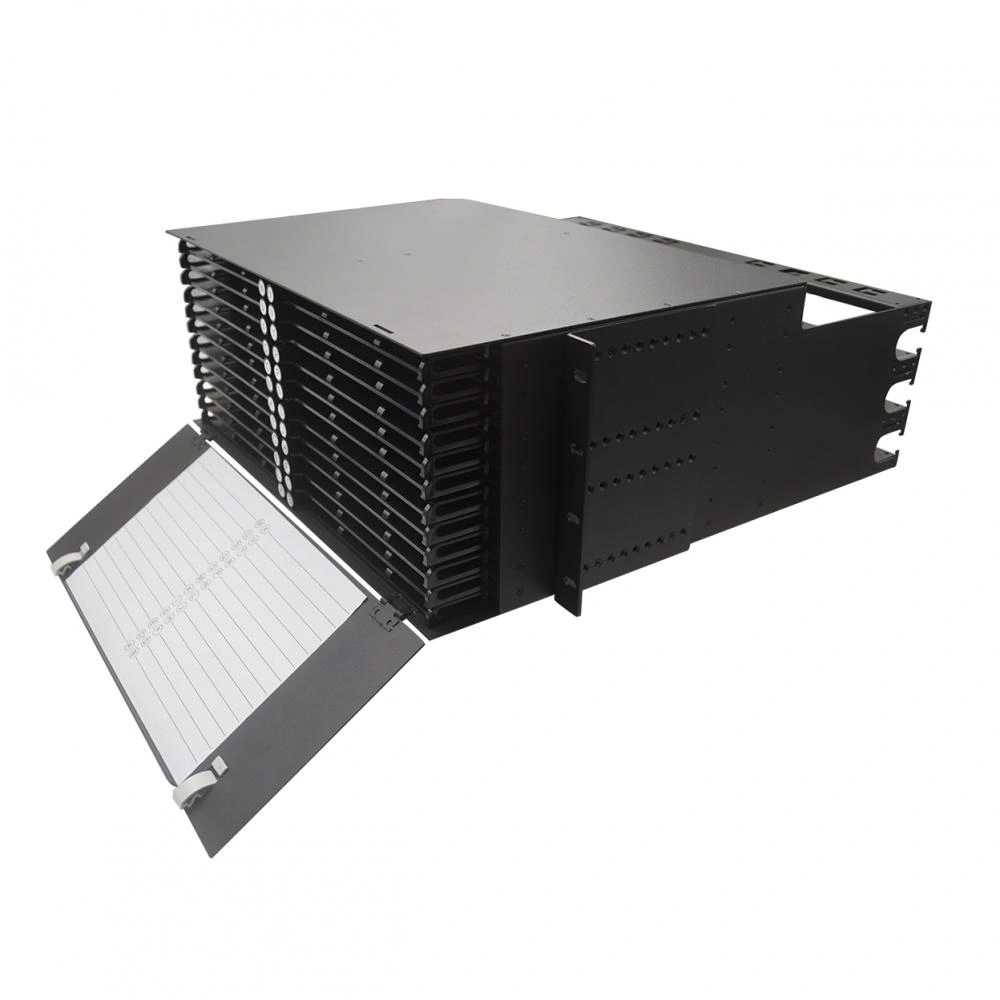

4U/576F LC/288F SC 4U/1152F MDC(2ports adapter) 4U/1724F MDC (3ports adapter)

High density unique design patch panel, with maximum LC connecting & cabling, adopt thehigh-strength environmental light weight material andsuperior surface treatment technique, which make thepanel achieved complete function and various flexiblecabling solution.

Composition：

• Aluminum or cold rolled steel patch panel•Plug-in cassette module with self-lock institutes• Fibre adapter• MPO/MTP and MDC trunk cable• MPO-LC/MDC fan out or LC/SC/MDC trunk Patchcord

Features

Super Density Cabling

1U/288F MDC /LC / 72F

2U/576F MDC / SC 288F/ 144F SC

4U/1152F MDC / 576F LC / 288F SC

Easy Operation

Standard 19”PatcPhanel

Environmental light weightAluminum material

Independent plug-in cassette

Front-end cable management

Stable adapter structure

Various Flexible Cabling

Compatible with 8F&12F solution

Replaceable label and layer remark

Duplex and Quad adapter available

Various connectors are optional

MPO-LC fan out and LC/SC trunk cable

Multi-applications in Data centre and FTTX

1.24F cassette module, suit for 3x8F/2x12F/1x24F LC connection

2.Environmentallight weight design (Aluminum) and anodized surface treatment guarantee the good quality

3.Side mounting bracket design achieve flexible adjustment

4.The smart self-lock institute design achieve easy inserting and pulling

5.The cassette compatible with LC duplex/SCsimplex/MPO figure SC / MDC 2 ports adapters

6.Pocket label convenient for independentlabel printing and replacement

Independent cassette forsmart cable management
Multi-Layer Cassette for easy separated operation
Label corresponding with each cassette for clear identificationOpen and close the cassettes by pushing the label keys

design with reserved
space for cable in with 24f splicing connection.
Each cassette support 4
MPO/MTP adaptor, available
for 1x24, 2x12 and 3x8 LC
and 4x12 MDC solutions
panel with independent cable
management frame to fix the trunk cable

Cassette Module

Cassett eApplication Option

2-MPO-12LC Connection

3-MPO-8LC Connection

1-MPO-24LC Connection

3*1X8 PLC Connection

24 Splice connection

Specification

ITEM	1U ODF	2U ODF	4U ODF
Dimension	435x460x44mm	435x460x88mm	435x460x176mm
Weight（containcassette）	3.7 kg	6.4kg	11.2kg
Packing box	539x366x94mm	539x366x139mm	539x336x226mm
Cassette QTY	6Pcs	12Pcs	24Pcs
Capacity	288F MDC /LC / 72F	576F MDC / SC 288F/ 144F SC	1152F MDC / 576F LC / 288F SC
Operating Temperature	-20℃〜+60℃	-20℃〜+60℃	-20℃〜+60℃
Patch cord Category	MPO/MTP-MDC/LC/SC Fan out or MDC/LC/SC trunk patch cord	MPO/MTP-MDC/LC/SC Fan out or MDC/LC/SC trunk patch cord	MPO/MTP-MDC/LC/SC Fan out or MDC/LC/SC trunk patch cord
