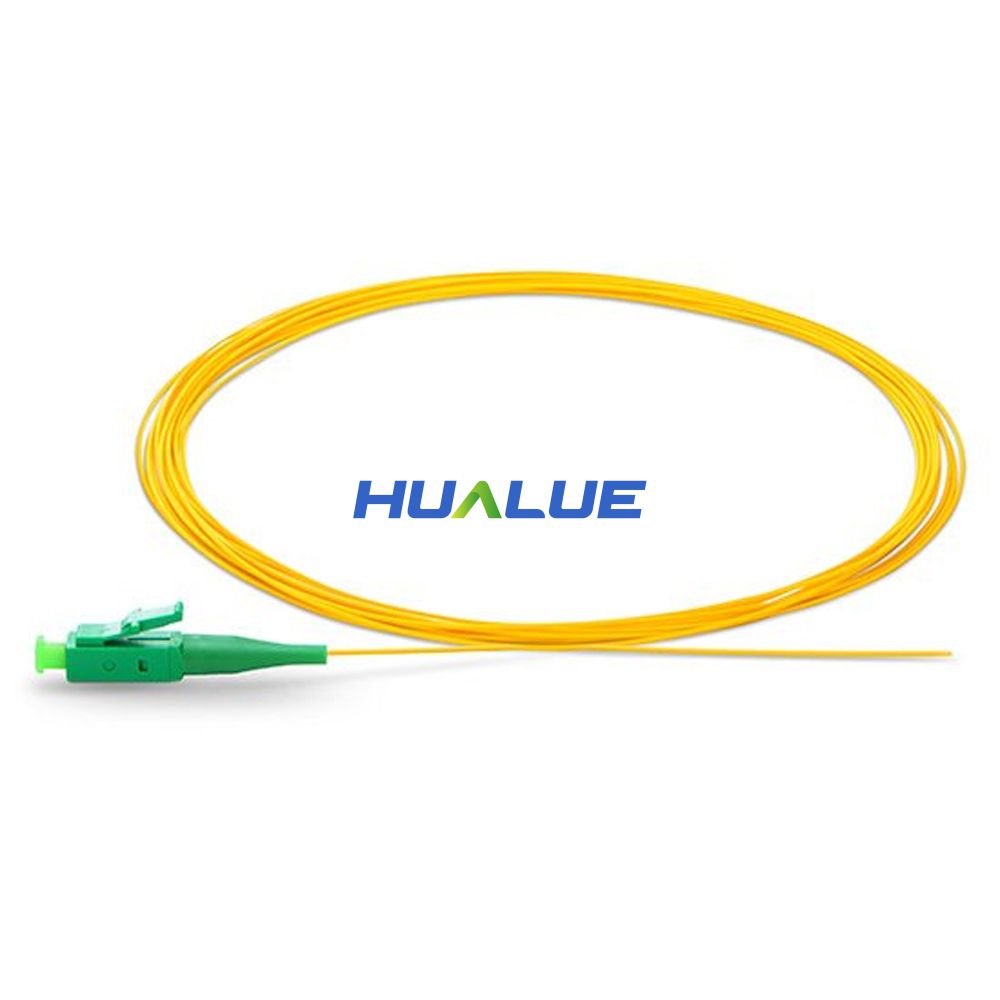

0.9mm Fiber Optic Pigtail | Single Mode & Multimode Fiber Pigtail
HUALUE supplies high-quality 0.9mm fiber optic pigtails with SC, LC, FC, and ST connectors. Available in Single Mode OS2 and Multimode OM1/OM2/OM3/OM4/OM5 fibers. Low insertion loss, high return loss, and reliable performance for FTTH, FTTx, telecom, and data center applications.
| Parameter | Specification |
|---|---|
| Outer Diameter | 0.9mm ±0.1mm (Tight Buffer) |
| Fiber Type | Single Mode: G652D / G657A1 / G657A2 (OS2) Multimode: OM1 / OM2 / OM3 / OM4 / OM5 |
| Connector Type | SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, ST/UPC, etc. |
| Insertion Loss | ≤0.3dB (Typical ≤0.2dB) |
| Return Loss | UPC ≥50dB, APC ≥60dB |
| Length | 0.5m, 1m, 1.5m, 2m, 3m (Custom lengths available) |
| Jacket Material | PVC / LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -40°C ~ +85°C |
| Standards Compliance | Telcordia GR-326-CORE, IEC, RoHS |
- Parameters
| Parameter | Specification |
|---|---|
| Outer Diameter | 0.9mm ±0.1mm (Tight Buffer) |
| Fiber Type | Single Mode: G652D / G657A1 / G657A2 (OS2) Multimode: OM1 / OM2 / OM3 / OM4 / OM5 |
| Connector Type | SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, ST/UPC, etc. |
| Insertion Loss | ≤0.3dB (Typical ≤0.2dB) |
| Return Loss | UPC ≥50dB, APC ≥60dB |
| Length | 0.5m, 1m, 1.5m, 2m, 3m (Custom lengths available) |
| Jacket Material | PVC / LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -40°C ~ +85°C |
| Standards Compliance | Telcordia GR-326-CORE, IEC, RoHS |

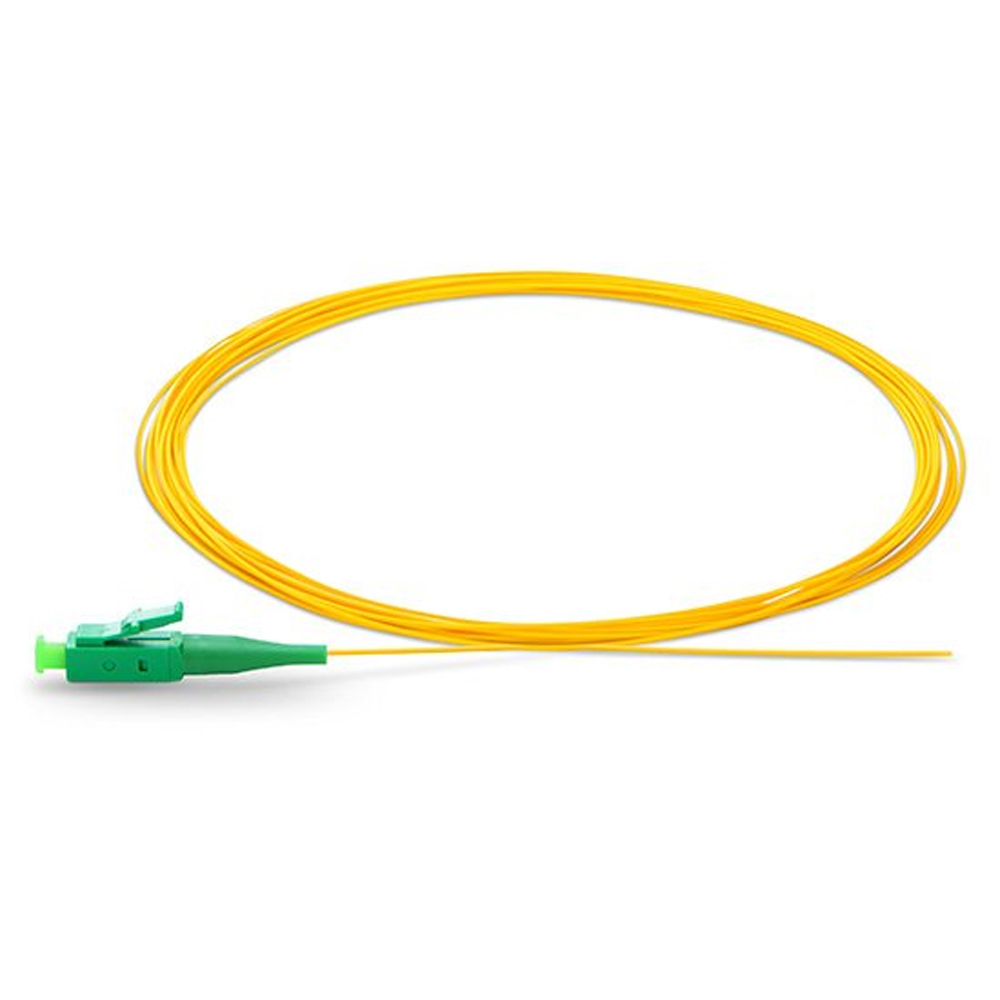

0.9mm Fiber Optic Pigtail
HUALUE 0.9mm Fiber Optic Pigtails are designed for high-performance optical network termination and splicing applications. Manufactured using premium optical fibers and precision connectors, these pigtails provide excellent optical performance, low insertion loss, and long-term reliability.
Available in Single Mode (OS2) and Multimode (OM1, OM2, OM3, OM4, OM5) fiber types, our 0.9mm pigtails support various connector options including SC, LC, FC, ST, E2000, and MU connectors.
They are widely used in FTTH networks, telecommunications systems, CATV networks, data centers, and fiber distribution frames (ODF).
 |  |  |
Technical Specifications
| Parameter | Specification |
|---|---|
| Outer Diameter | 0.9mm ±0.1mm (Tight Buffer) |
| Fiber Type | Single Mode: G652D / G657A1 / G657A2 (OS2) Multimode: OM1 / OM2 / OM3 / OM4 / OM5 |
| Connector Type | SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, ST/UPC, etc. |
| Insertion Loss | ≤0.3dB (Typical ≤0.2dB) |
| Return Loss | UPC ≥50dB, APC ≥60dB |
| Length | 0.5m, 1m, 1.5m, 2m, 3m (Custom lengths available) |
| Jacket Material | PVC / LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -40°C ~ +85°C |
| Standards Compliance | Telcordia GR-326-CORE, IEC, RoHS |
Features & Benefits
✅ High-Density Design
Ultra-slim 0.9mm diameter allows maximum port density in ODF racks and fiber panels.
✅ Premium Low Loss Performance
Manufactured with high-quality fibers (Corning, YOFC) and precision ceramic ferrules for excellent optical performance.
✅ Factory Pre-Terminated
Professionally polished connectors ensure clean end-face and reliable plug-and-play installation.
✅ Flame Retardant & Safe
LSZH jacket option available for data centers and building installations.
✅ Wide Connector Options
Available in SC, LC, FC, ST connectors with UPC or APC polishing.
Available Connector Types
- SC/UPC Fiber Pigtail
- SC/APC Fiber Pigtail
- LC/UPC Fiber Pigtail
- LC/APC Fiber Pigtail
- FC/UPC Fiber Pigtail
- FC/APC Fiber Pigtail
- ST Fiber Pigtail
- E2000 Fiber Pigtail
- MU Fiber Pigtail
Customized connector combinations are available upon request.
Applications
- FTTH / FTTx Networks
- Data Center High-Density Cabling
- ODF & Fiber Distribution Frames
- Telecom Rooms & Fiber Cross-Connects
- CATV & Broadband Networks
- Enterprise Fiber LAN
- Fiber Optic Test Equipment
..........................................................................................................................................................................................................................................................................................................
What is a 0.9mm Fiber Optic Pigtail?
A 0.9mm Fiber Optic Pigtail is a short optical fiber cable with a factory-installed connector on one end and exposed fiber on the other. With a slim outer diameter of only 0.9mm, it is specifically designed for high-density fiber optic applications such as ODF racks, fiber distribution boxes, and data center patching.Compared to 2.0mm and 3.0mm pigtails, the 0.9mm version offers superior flexibility, smaller bend radius, and better space efficiency, making it the preferred choice for modern high-density fiber installations.
Why Choose HUALUE 0.9mm Fiber Optic Pigtails?
- Advanced manufacturing facilities
- Strict quality control system
- Global telecom project experience
- Customized connector and cable solutions
- Fast delivery and local support services
- Competitive factory-direct pricing
HUALUE is committed to providing reliable fiber connectivity solutions for telecom operators, data centers, ISPs, and system integrators worldwide.
