FTTD GPON ONU | Fiber To The Desktop Optical Network Terminal Solutions
HUALUE FTTD GPON ONU solutions provide high-speed fiber-to-the-desktop connectivity for enterprises, hotels, campuses, hospitals, and government networks. Available in wall-mounted, desktop, Type-C, voice, and portable ONU models with remote management and carrier-grade reliability.
| Equipment | Panel type HGU |
| Power Supply: | Type-C Reverse Power Supply 5V/900mA |
| Operating Status: | Operating Temperature: -5℃~+45℃; Operating Humidity: 10%~90% (Non-condensing) |
| Storage Status: | Storage Temperature: -30℃~+70℃; Storage Humidity: 10%~90% (Non-condensing) |
| Dimensions: | 86*86*53mm |
| Network Side Interface: | 1*GPON |
| User Side Interface: | 1*Type-C,2*Type-C,1*Type-C+ 1*POTS |
| Indicator Lights: | Power, PON, LOS, Type-C |
| PON Port: | Supports GPON optical modules, Port Type: SC/UPC Complies with standards ITU-T G.984, G.988, Class B+ Receiver Sensitivity: -28dBm Overload Optical Power: -8dBm Transmission Rate: Downlink 2.488 Gbit/s, Uplink 1.244 Gbit/s |
| Type-C Port | Port Type: Type-C Port Supports USB 3.0 |
- Parameters
| Equipment | Panel type HGU |
| Power Supply: | Type-C Reverse Power Supply 5V/900mA |
| Operating Status: | Operating Temperature: -5℃~+45℃; Operating Humidity: 10%~90% (Non-condensing) |
| Storage Status: | Storage Temperature: -30℃~+70℃; Storage Humidity: 10%~90% (Non-condensing) |
| Dimensions: | 86*86*53mm |
| Network Side Interface: | 1*GPON |
| User Side Interface: | 1*Type-C,2*Type-C,1*Type-C+ 1*POTS |
| Indicator Lights: | Power, PON, LOS, Type-C |
| PON Port: | Supports GPON optical modules, Port Type: SC/UPC Complies with standards ITU-T G.984, G.988, Class B+ Receiver Sensitivity: -28dBm Overload Optical Power: -8dBm Transmission Rate: Downlink 2.488 Gbit/s, Uplink 1.244 Gbit/s |
| Type-C Port | Port Type: Type-C Port Supports USB 3.0 |
FTTD GPON ONU | Fiber To The Desktop Optical Network Terminal Solutions
HUALUE FTTD (Fiber To The Desktop) GPON ONU series is designed to deliver high-bandwidth, reliable, and secure fiber access directly to workstations, offices, hotel rooms, classrooms, hospitals, and enterprise environments.
Based on mature GPON technology compliant with ITU-T G.984 and G.988 standards, the FTTD ONU series provides carrier-grade broadband access, voice services, and simplified network management while supporting modern digital workplace requirements.
The product portfolio includes wall-mounted ONU, Type-C access ONU, voice ONU, portable ONU, and industrial-grade ONU models to meet various deployment scenarios.
| |
HL-010G-D |
HL-010G-B |
Features
True Fiber To The Desktop Architecture
Direct optical fiber connection to end-user locations eliminates bandwidth bottlenecks and ensures stable Gigabit access.
Carrier-Grade GPON Technology
Supports GPON downstream rates up to 2.488 Gbps and upstream rates up to 1.244 Gbps, delivering reliable broadband connectivity.
Flexible Deployment Options
Available in:
- 86-Type Wall Mounted ONU
- Type-C ONU
- Voice ONU (POTS)
- Portable GPON ONU
- Industrial Metal Housing ONU
Advanced Remote Management
Supports MQTT and OMCI remote management for service provisioning, monitoring, configuration, and fault diagnosis.
Enterprise Security
Supports:
- DHCP Snooping
- MAC Address Filtering
- Broadcast Storm Suppression
- Loop Detection
for enhanced network security.
Product Models

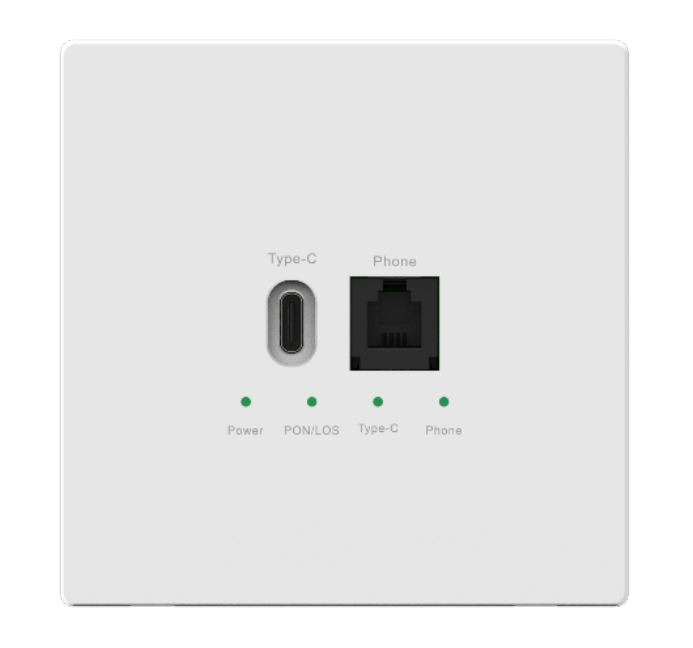

| HL-010G-A | HL-010G-D | HL-010G-C | HL-010G-B | HL-010G-K | HL-010G-KM | HL-010G-H |
| 1*Type-C Passive Panel-Mounted xPON ONU | 2*Type-C Passive Panel-Mounted xPON ONU | 1*Type-C Passive Thumb-Type xPON ONU | 1*Type-C + 1*POTS Active Panel-Mounted xPON ONU | 1*GE Active Thumb-Type xPON ONU | 1*GE Active Thumb-Type xPON ONU (Metal Shell) | 1*LAN Active Panel-Mounted xPON ONU |
Product Specifications
| Equipment | Panel type HGU |
| Power Supply: | Type-C Reverse Power Supply 5V/900mA |
| Operating Status: | Operating Temperature: -5℃~+45℃; Operating Humidity: 10%~90% (Non-condensing) |
| Storage Status: | Storage Temperature: -30℃~+70℃; Storage Humidity: 10%~90% (Non-condensing) |
| Dimensions: | 86*86*53mm |
| Network Side Interface: | 1*GPON |
| User Side Interface: | 1*Type-C,2*Type-C,1*Type-C+ 1*POTS |
| Indicator Lights: | Power, PON, LOS, Type-C |
| PON Port: | Supports GPON optical modules, Port Type: SC/UPC Complies with standards ITU-T G.984, G.988, Class B+ Receiver Sensitivity: -28dBm Overload Optical Power: -8dBm Transmission Rate: Downlink 2.488 Gbit/s, Uplink 1.244 Gbit/s |
| Type-C Port | Port Type: Type-C Port Supports USB 3.0 |
Indicator light definition
| Indicator Light Name | Label | Color | Display Function |
| Power Status Light | Power | Green | Off: Gateway not powered on Solid on: Gateway powered on and started up, in normal operation Blinking: Gateway powering on and starting up |
| PON Status Light | PON | Green | Off: No OLT downlink light detected Solid on: OLT registration or authorization successful Blinking: OLT registration in progress |
| Optical Signal Light | LOS | Red | Off: Optical signal reception normal Blinking red: No optical signal received or optical signal strength too low |
| Data Status Light | Type-C | Green | Off: Device not powered on, or no data on Type-C port Solid on: Type-C interface started Blinking: Data transmission on Type-C interface |
Functional parameters
| Product Form Factor: | GPON HGU |
| VLAN: | Supports VLAN addition, stripping, pass-through, and conversion. The device supports a maximum of 4094 VLANs, ensuring complete service isolation across different VLANs and supporting broadcast storm suppression. The device supports single-layer VLANs, with outer VLAN tagging implemented by the OLT and VLAN termination by the BRAS. It supports different VLANs for different ports. |
| Multicast | Supports IGMP v2 and v3 snooping Supports flow management based on multicast addresses and VLANs Supports configurable static multicast functionality |
| QoS | Supports 802.1p priority Supports source MAC/destination MAC, DSCP/TOS, source IP/destination IP, port, and protocol type mapping to 802.1p Supports congestion management functionality |
| Security | Supports MAC address filtering Supports user ring network detection Supports broadcast packet suppression Supports DHCP snooping |
| Network Management | Supports MQTT protocol integration with network management systems, enabling remote management and maintenance, including voice and broadband service provisioning, and remote fault diagnosis. Supports remote management and maintenance of devices via OMCI, including device registration, broadband service provisioning, QoS, and remote fault diagnosis. Supports direct connection of terminals to computers for on-site configuration and management. Default IP: 192.168.1.1, Default Username: admin, Password: admin, Default bridged mode, no configuration required. |
Applications
| Enterprise Office Networks Deliver Gigabit fiber connectivity directly to employee workstations. Smart HotelsProvide high-speed Internet and voice services to guest rooms. Educational CampusesSupport digital classrooms and campus-wide fiber access. Healthcare FacilitiesEnable reliable connectivity for medical information systems. Government NetworksProvide secure and centralized optical access management. Industrial Communication NetworksSupport industrial Ethernet and surveillance systems. |  |
Benefits of FTTD Deployment
Compared with traditional copper-based LAN networks, FTTD solutions offer:
- Higher bandwidth
- Longer transmission distance
- Better electromagnetic immunity
- Lower maintenance costs
- Simplified network architecture
- Future-ready infrastructure
As enterprises continue to upgrade their digital infrastructure, Fiber To The Desktop has become a preferred solution for next-generation office connectivity.
Why Choose HUALUE FTTD Solutions?
- Carrier-grade GPON technology
- Multiple ONU form factors
- Enterprise and telecom deployment experience
- Flexible OEM/ODM support
- Global technical support
- Reliable supply chain and project delivery
HUALUE provides complete FTTD and GPON access solutions for telecom operators, system integrators, enterprises, and smart building projects worldwide.
What is FTTD?
FTTD (Fiber to the Desk) is an advanced fiber optic network architecture that brings high-performance optical fiber directly from the main distribution room to individual user desks and workstations. It represents the highest level of enterprise cabling, replacing traditional copper-based networks with pure fiber connectivity.
FTTD vs Traditional Networks
| Feature | FTTD (Fiber to the Desk) | Traditional Copper (Cat6/Cat8) |
| Maximum Speed | 100G+ | 10G (limited distance) |
| Latency | Ultra Low | Medium |
| Distance | 300m+ | 100m max |
| EMI Resistance | Excellent | Poor |
| Future Proof | Yes (20+ years) | Limited |
