HL-IP68-M10P

HL’S pre-connected terminal box is an innovative solution for the development of FTTX fiber optic networks in external or internal plant environments . It can be installed on the wall , pole or messenger cable.It allows the passage of low or medium density cable and rapid distribution through its pre- connectorized output ports , which considerably saves time and operating costs

HL’S pre-connected terminal box is an innovative solution for the development of FTTX fiber optic networks in external or internal plant environments . It can be installed on the wall , pole or messenger cable. It allows the passage of low or medium density cable and rapid distribution through its pre- connectorized output ports , which considerably saves time and operating costs.

Parameters

HL’S pre-connected terminal box is an innovative solution for the development of FTTX fiber optic networks in external or internal plant environments . It can be installed on the wall , pole or messenger cable. It allows the passage of low or medium density cable and rapid distribution through its pre- connectorized output ports , which considerably saves time and operating costs.

Product Detail

IP68 TERMINAL BOX PRECONNECTORIZED 8 PORTS

● Advanced structure design , easy operation and reasonable routing.

Material : PC+ABS

● Moisture-proof , waterproof , dust-proof , anti-aging.

Protection level up to IP68.

● Oval optical cable entry , 2 branch optical cable entries and 8 pre-connected adapters.

● Optional splice trays. - Installation method: On pole, aerial, on wall.

● Can be equipped with drop cable storage tray to meet the storage of 50 meters of 5mm round wire.

Mechanical specifications

Parameter	Value
External dimensions(A x B x C)	370(L) x 255(A) x 138(P) mm
Color	Black / Customizable
Protection level	IP68
Size and number of optical cable ports	1 oval optical cable entry 2 bypass optical cable
Maximum capacity	entries and 8 preconnected adapters 4 type (48 cores)
Cable entry size	Up to Φ15 mm
Cable out size	2 bypass ports x Φ12 mm
Operating temperature	-40°+ 65°
Installation temperature	-5°+ 40°
Storage temperature	-40°+ 65 °
Atmospheric pressure	70~106Kpa
Relative air humidity	+40°
Inflammability	UL94
Neutral salt spray(NSS)test	48H
Environmental performance	In full RoHs compliance
Installation method	On pole , aerial , on wall

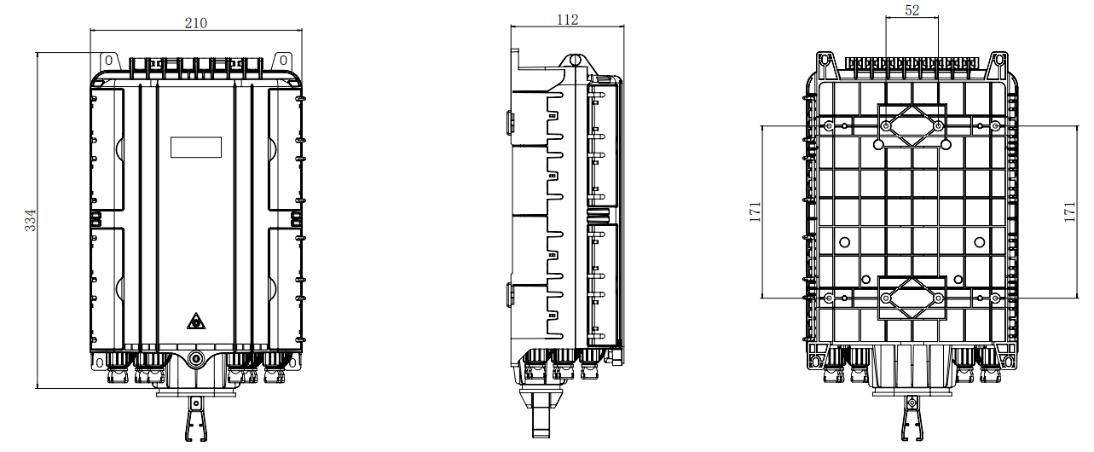

Dimensional scheme

Pigtail	IL(dB) of the pigtail	IL(dB) of distribution box	RL(dB)test method
Pigtail-SC/APC-00-	≤0.3	≤0.5	≥55 dB	IL:IEC61300-3-4
SM-SX(1C1F)-
OD0.9MM-PVC-				Method B
G657A2-Cable
Color(Default)-				RL:IEC61300-3-6
Interior-RoHs-1.5M

Routing diagram

Item	Splice tray A
Dimensions(H x W x D:unit mm)	115129.778
Net weight(unit : kg)	0.027
Photo,
Color	RAL7035
Material	ABS+PC
Splicing capacity of one tray(cores)	12,1 slot for 1/8PLC

Environmental characteristics

This product complies with the RoHs environmental protection directive , and the content of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether(PBDE) does not exceed the limit.

Installation method
Drill 3 holes in the wall according to the size in the specification table ,put in the expansion bolt 7.5*40, position the box to match the holes, and use the bolt to fix.

Pass the ring through the slot in the back plate and attach it to the telecom pole

The aerial structure

Tie the two installed on the chassis overhead hung on the wire, and then screwed, prevent the case from falling.

CONFIGURATION

Part name	Reference picture	Unit	Quantity	Remark
Wall- mounted kit		set	1	Optional as customer’s request. (Expanded plastic plug Φ7.5x40mm, Phillips self- tapping screws M5x40mm.)
Nylon cable tie		pcs	6	3x100mm
Stainless steel strip		pcs	2	Optional as customer’s request
Hoop		pcs	2	ᴓ13-19mm

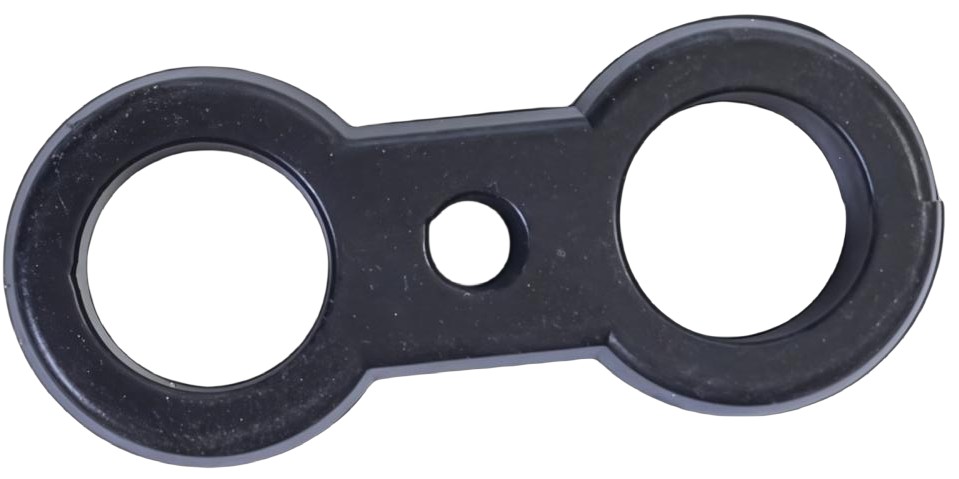

Brach cable sealing nut wrench		pcs	48
Pole- mounted kit-A		set	1
Bare fiber protection tube		pcs	4
Silicone oil		pcs	2
Silicone rings		pcs	4	8-10MM/10-12MM
Silicone rings(big)		pcs	2	8-13MM/13-16MM
Wire clips		pcs	2	8-13MM/13-16MM
Aerial- mounted kit		set	1	1 Optional as customer’s request
