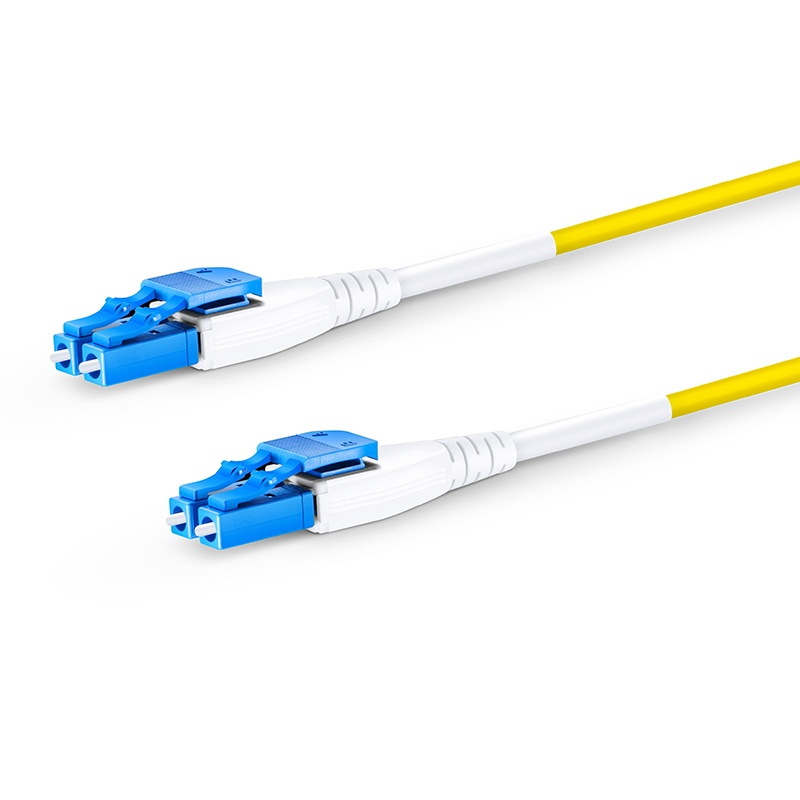

LC Uniboot Patchcord
The unique integrated design of LC Uniboot fiber Patchcord (single sheath contains two optical fibers) can reduce cable management space by 50%-68%, significantly alleviating the congestion problem of patch panels and switch ports. The product supports tool-free on-site polarity reversal, which can be completed by rotating the connector 180° or switching the A/B position without disassembly or special tools, especially suitable for high-frequency moves, adds and changes (MAC) scenarios in data c
| Parameter | Singlemode(SM) | Multimode(MM) | Test Standard |
| Max.Insertion Loss | ≤0.30 dB | ≤0.20 dB | IEC 61300-3-4 |
| Min. Return Loss | ≥50 dB (UPC) | ≥28 dB | IEC 61300-3-6 |
| Durability(Cycles) | >500 | >500 | Telcordia GR-326-CORE |
- Parameters
| Parameter | Singlemode(SM) | Multimode(MM) | Test Standard |
| Max.Insertion Loss | ≤0.30 dB | ≤0.20 dB | IEC 61300-3-4 |
| Min. Return Loss | ≥50 dB (UPC) | ≥28 dB | IEC 61300-3-6 |
| Durability(Cycles) | >500 | >500 | Telcordia GR-326-CORE |
The LC Uniboot Fiber Patch Cord is a revolutionary high-density interconnect product integrating duplex LC connectors via a single round dual-fiber cable (typical Ø: 1.6mm/2.0mm/3.0mm). Its unified design (single jacket encapsulating dual fibers) reduces cable management space by 50%-68% compared to traditional duplex 'zipcord' patch cords, significantly alleviating congestion in patch panels and switch ports. Featuring tool-less field polarity reversal, the polarity can be reconfigured by rotating the connector 180° or switching A/B positions without disassembly or specialized tools – ideal for high-frequency Moves, Adds, and Changes (MAC) in data centers.
|  |
 |
Pecifications (Typical Parameters)
| Parameter | Value |
| Connector Type | LC/UPC or LC/APC |
| Fiber Count | Duplex (2 fibers) |
| Cable Type | Uniboot, 2.0mm or 3.0mm round cable |
| Fiber Type | OM3, OM4, OM5 (50/125μm), OS2 (9/125μm) |
| Insertion Loss | ≤0.2 dB (typical), ≤0.3 dB (max) |
| Return Loss | ≥50 dB (UPC), ≥60 dB (APC) |
| Jacket Material | LSZH, OFNR, or OFNP |
| Operating Temperature | -20°C to +70°C |
| Standards | Compliant with IEC, TIA/EIA, RoHS |
Features
1.Space Optimization & High-Density Support 68% Space Reduction: 1.6mm-diameter cables save nearly 2/3 space vs. traditional 2.0mm zip cords, enhancing rack/aisle utilization. Low-Profile Connector Housing: Compact design compatible with QSFP-DD/OSFP transceivers, eliminating adjacent port interference. 2.Streamlined Operation Push-Pull Latch Mechanism: Integrated pull tab or push-pull boot enables effortless operation in densely stacked ports. Tool-less Polarity Reversal: Unlock the latch, rotate connector 180° to switch A-B/A-A polarity without fiber exposure or damage.
3.Environmental Resilience Extended Temperature Range: -40°C to +85°C (Industrial Grade). Protection Options: IP67 sealing (outdoor), LSZH jacket (data centers), corrugated armor (industrial). |  |
Applications
Data Centers & Cloud Computing High-Density Patch Panels: Mitigate port congestion in 40G/100G switches, optimize airflow cooling. Hyperscale Networking: Ultra-low-loss interconnects for AI clusters and colocation facilities.
| Telecom Infrastructure 5G Fronthaul: Connects BBU to RRU via FTTA (Fiber-to-the-Antenna), compliant with CPRI/eCPRI. FTTH Drop Cables: Simplified deployment in residential conduits via thin-profile cables.
| Industrial & Harsh Environments Outdoor Base Stations: UV-resistant jackets and armored structures withstand dust, humidity, and chemicals. Transportation/Energy: Cold start at -40°C ensures reliability in oil/gas/mining emergency communications.
|
