MPO Trunk Cable Manufacturer | High Density Fiber Optic Cabling Solution | HUALUE
HUALUE MPO Trunk Cable provides high-density, low-loss fiber connectivity for modern data centers, cloud computing, FTTH backbone, and high-speed 40G/100G/400G transmission networks. Available in OM3, OM4, OM5, and OS2 fiber types with customizable lengths, connectors, and polarity options.
Connector A
MPO/MTP®
Connector B
MPO/MTP®
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Glass Fiber
G.657.A
Minimum Bend Radius
10mm
Polish Type
APC to APC
Polarity
Type B
Cable Jacket
Plenum (OFNP)
Cable Structure
Double Jacket
Fiber Count
24 Fibers (Base-12)
Breakout Length
0.84m
Cable Outside Diametre (OD)
4.5mm
Breakout Outside Diametre (OD)
2.0mm
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥65dB
Attenuation at 1310nm
≤0.35dB/km
Attenuation at 1550nm
≤0.21dB/km
Long-term Tensile Load
130N
Short-term Tensile Load
400N
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature
-10 to +70°C (14 to 158℉)
- Parameters
Connector A
MPO/MTP®
Connector B
MPO/MTP®
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Glass Fiber
G.657.A
Minimum Bend Radius
10mm
Polish Type
APC to APC
Polarity
Type B
Cable Jacket
Plenum (OFNP)
Cable Structure
Double Jacket
Fiber Count
24 Fibers (Base-12)
Breakout Length
0.84m
Cable Outside Diametre (OD)
4.5mm
Breakout Outside Diametre (OD)
2.0mm
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥65dB
Attenuation at 1310nm
≤0.35dB/km
Attenuation at 1550nm
≤0.21dB/km
Long-term Tensile Load
130N
Short-term Tensile Load
400N
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature
-10 to +70°C (14 to 158℉)
MPO Trunk Cable is a high-density multi-fiber optical cable assembly designed for rapid deployment in data centers and high-speed transmission networks. It uses MPO/MTP connectors to integrate multiple optical fibers into a single compact interface, significantly reducing installation space and improving cable management efficiency.
MPO trunk cables are widely used in:
- Data Centers
- Cloud Computing Infrastructure
- AI Computing Clusters
- Telecom Backbone Networks
- 40G / 100G / 200G / 400G Ethernet Systems
- Spine-Leaf Architecture Networks
HUALUE provides customized MPO trunk cable solutions with stable optical performance, low insertion loss, and high reliability for mission-critical network environments.

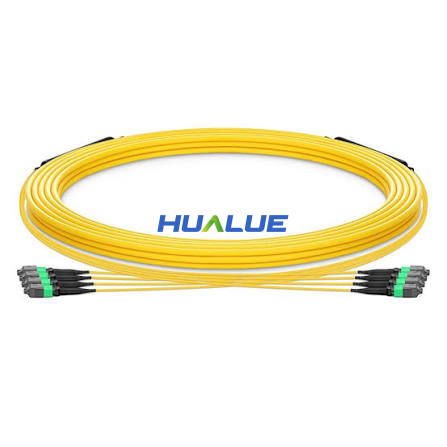

OS2 trunk cable |

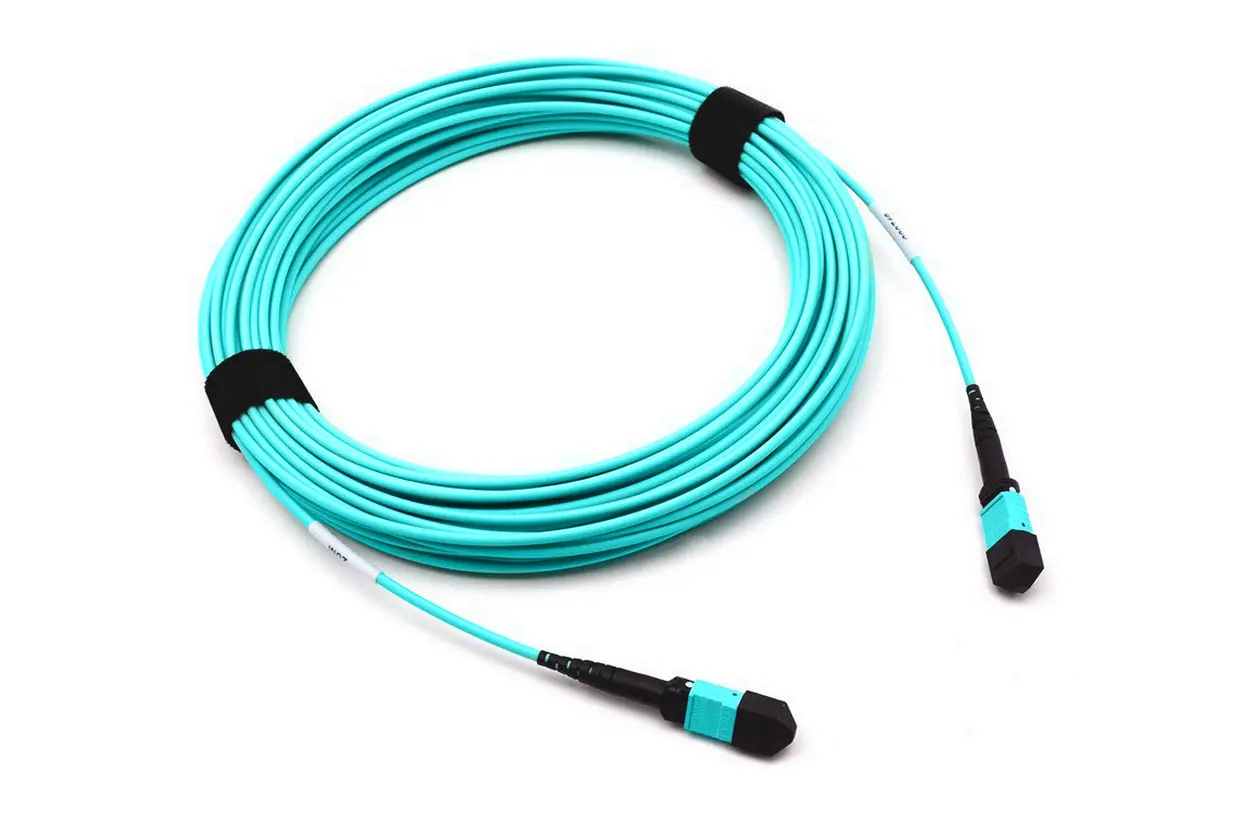

OM3/OM4 Multimode trunk cable |

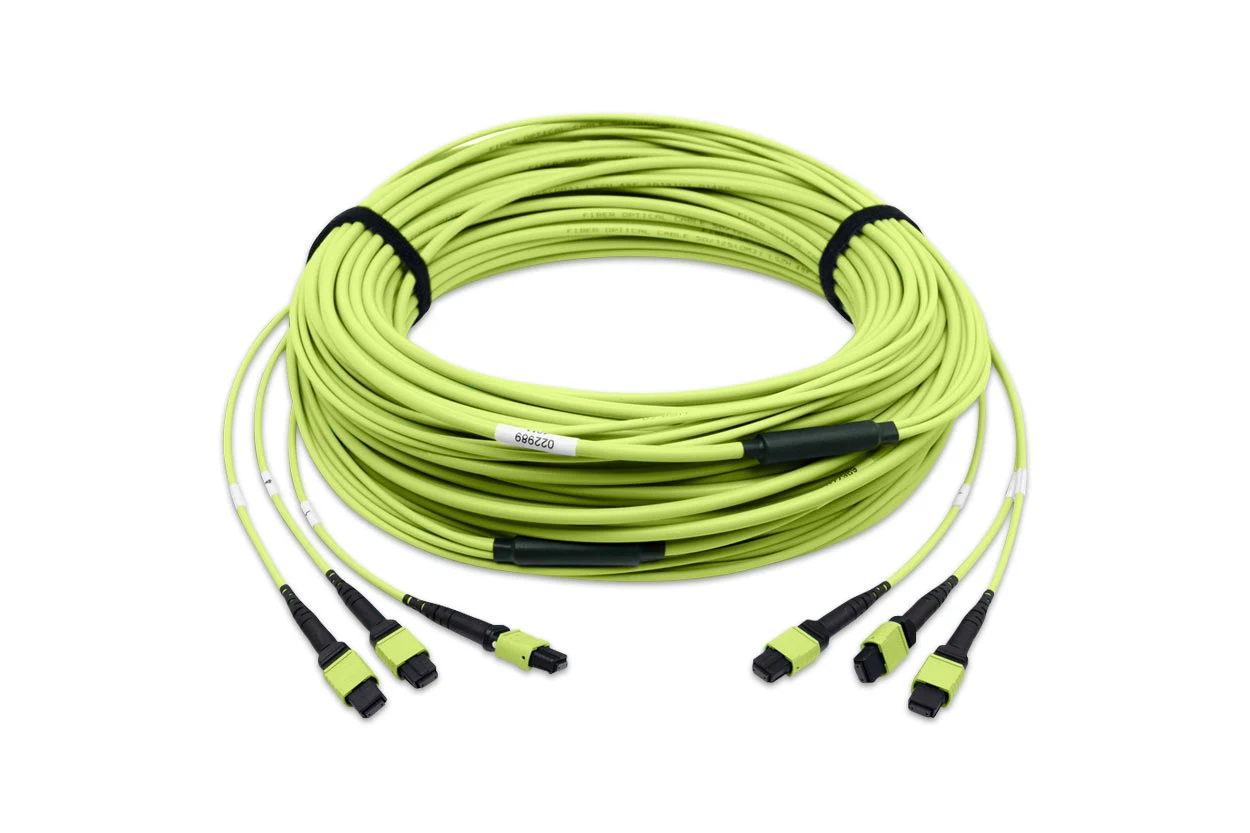

72/144 Multi-core trunk cable |
Technical Specifications
Connector A
MPO/MTP®
Connector B
MPO/MTP®
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Glass Fiber
G.657.A
Minimum Bend Radius
10mm
Polish Type
APC to APC
Polarity
Type B
Cable Jacket
Plenum (OFNP)
Cable Structure
Double Jacket
Fiber Count
24 Fibers (Base-12)
Breakout Length
0.84m
Cable Outside Diametre (OD)
4.5mm
Breakout Outside Diametre (OD)
2.0mm
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥65dB
Attenuation at 1310nm
≤0.35dB/km
Attenuation at 1550nm
≤0.21dB/km
Long-term Tensile Load
130N
Short-term Tensile Load
400N
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature
-10 to +70°C (14 to 158℉)
Quality
100% Factory Tested
High-Precision MPO Testing for 1310nm / 1550nm / 1625nm Wavelengths
At HUALUE, every MPO trunk cable undergoes strict optical performance testing before shipment. To ensure long-term stability and transmission reliability in high-speed optical networks, we conduct comprehensive testing at three critical optical wavelengths:
- 1310nm
- 1550nm
- 1625nm
These tests verify that our MPO products maintain excellent insertion loss performance, transmission stability, and optical consistency across different network operating environments.
 |  |
Product Features
High Density Cabling Supports 8F, 12F, 16F, 24F, 48F, 72F, and 144F fiber configurations, greatly improving rack space utilization. | Low Insertion Loss Premium ferrule polishing and precision manufacturing ensure excellent optical transmission performance. | Fast Deployment Pre-terminated factory-tested assemblies reduce installation time and field termination costs. | Excellent Compatibility Compatible with major MPO/MTP system standards and network equipment brands. | Flexible Customization Available in: Single Mode OS2 Multimode OM3 / OM4 / OM5 Female/Male MPO Connectors Type A / Type B / Type C Polarity LSZH / OFNR / OFNP Jacket | Superior Reliability Designed for high-speed data transmission with stable performance in demanding environments. |
Typical Applications
Data Centers
Supports high-density cabling architecture for hyperscale and enterprise data centers.
40G/100G/400G Ethernet
Ideal for QSFP, QSFP28, QSFP-DD, and high-speed optical transceiver interconnections.
Telecom Networks
Used in core transmission systems and optical distribution networks.
FTTH Backbone Networks
Suitable for high-capacity optical fiber distribution systems.
Why Choose HUALUE?
Strong Manufacturing Capabilities
HUALUE focuses on high-quality fiber optic communication products, possessing stringent production control and advanced testing systems. Our daily production capacity for MPO connectors is 1200 pieces.
Extensive Telecom Operator Experience
Our team has extensive experience supporting telecom operators, Internet Service Providers (ISPs), and large-scale network deployment projects.
Stable Quality Control
Every MPO trunk fiber optic cable undergoes 100% factory testing before leaving the factory to ensure stable optical performance.
Flexible OEM and ODM Services
We can provide customized labeling, packaging, cable structure, and connector configurations according to customer needs.
Fast Delivery
Efficient production management helps customers shorten project delivery cycles.
