MPO Trunk Cable Manufacturer | High-Density Low-Loss MPO/MTP Cables for Data Center 40G/100G/400G - HUALUE
HUALUE manufactures premium MPO/MTP trunk cables for AI data centers, cloud computing, and enterprise networks. High-density, low-loss, factory-tested MPO trunk solutions supporting 40G, 100G, 400G and future 800G applications.
| Item | Specification | Item | Specification |
| Connector Type | MPO / MTP Compatible | Fiber Count | 8 / 12 / 16 / 24 / 32 / 48 / 72 / 96 / 144 Fibers |
| Fiber Type | OS2, OM3, OM4, OM5 | Jacket | OFNR, OFNP, LSZH, PVC |
| Polish Type | APC / PC | Connector Gender | Male / Female |
| Polarity | Type A / Type B / Type C | Cable Diameter | Customized |
| Insertion Loss (Standard) | ≤0.35 dB ;(Elite≤0.20 dB) | Operating Temperature | -40°C to +85°C |
| Return Loss | ≥60 dB (APC) | Compliance | IEC, TIA, Telcordia, RoHS |
- Parameters
| Item | Specification | Item | Specification |
| Connector Type | MPO / MTP Compatible | Fiber Count | 8 / 12 / 16 / 24 / 32 / 48 / 72 / 96 / 144 Fibers |
| Fiber Type | OS2, OM3, OM4, OM5 | Jacket | OFNR, OFNP, LSZH, PVC |
| Polish Type | APC / PC | Connector Gender | Male / Female |
| Polarity | Type A / Type B / Type C | Cable Diameter | Customized |
| Insertion Loss (Standard) | ≤0.35 dB ;(Elite≤0.20 dB) | Operating Temperature | -40°C to +85°C |
| Return Loss | ≥60 dB (APC) | Compliance | IEC, TIA, Telcordia, RoHS |
MPO Trunk Cable Manufacturer for High-Density Data Center Cabling
Modern data centers demand more bandwidth, greater fiber density, and faster deployment than ever before. As networks evolve from 40G and 100G to 400G and emerging 800G architectures, the quality of the optical backbone becomes increasingly critical.
HUALUE designs and manufactures high-performance MPO/MTP Trunk Cables that simplify large-scale fiber deployment while delivering outstanding optical performance, low insertion loss, and long-term reliability.
Our plug-and-play trunk cable solutions reduce installation time, maximize rack space utilization, and provide a scalable infrastructure for AI computing, hyperscale cloud, enterprise networks, and telecommunications.
 |  |  |  |
Specifications
| Item | Specification | Item | Specification |
| Connector Type | MPO / MTP Compatible | Fiber Count | 8 / 12 / 16 / 24 / 32 / 48 / 72 / 96 / 144 Fibers |
| Fiber Type | OS2, OM3, OM4, OM5 | Jacket | OFNR, OFNP, LSZH, PVC |
| Polish Type | APC / PC | Connector Gender | Male / Female |
| Polarity | Type A / Type B / Type C | Cable Diameter | Customized |
| Insertion Loss (Standard) | ≤0.35 dB ;(Elite≤0.20 dB) | Operating Temperature | -40°C to +85°C |
| Return Loss | ≥60 dB (APC) | Compliance | IEC, TIA, Telcordia, RoHS |

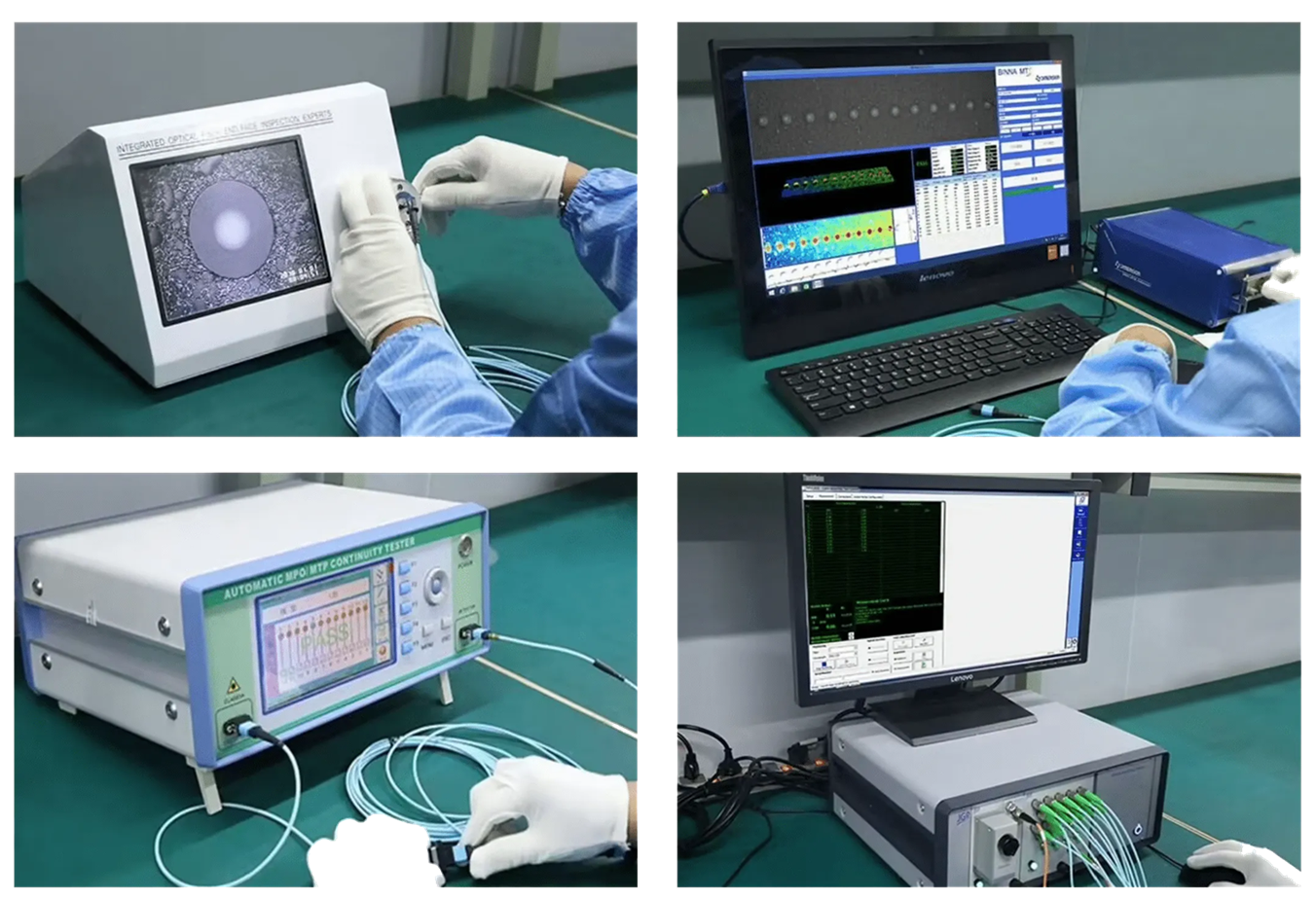

 | Factory Quality You Can Trust Every MPO trunk cable is manufactured under strict quality management. Each assembly undergoes comprehensive inspection including: 100% Insertion Loss Testing Return Loss Testing End Face Inspection Polarity Verification Visual Inspection Mechanical Reliability Test HUALUE also supports customized 1310nm / 1550nm / 1625nm multi-wavelength attenuation testing, providing customers with enhanced verification for critical telecommunications and FTTH projects. |

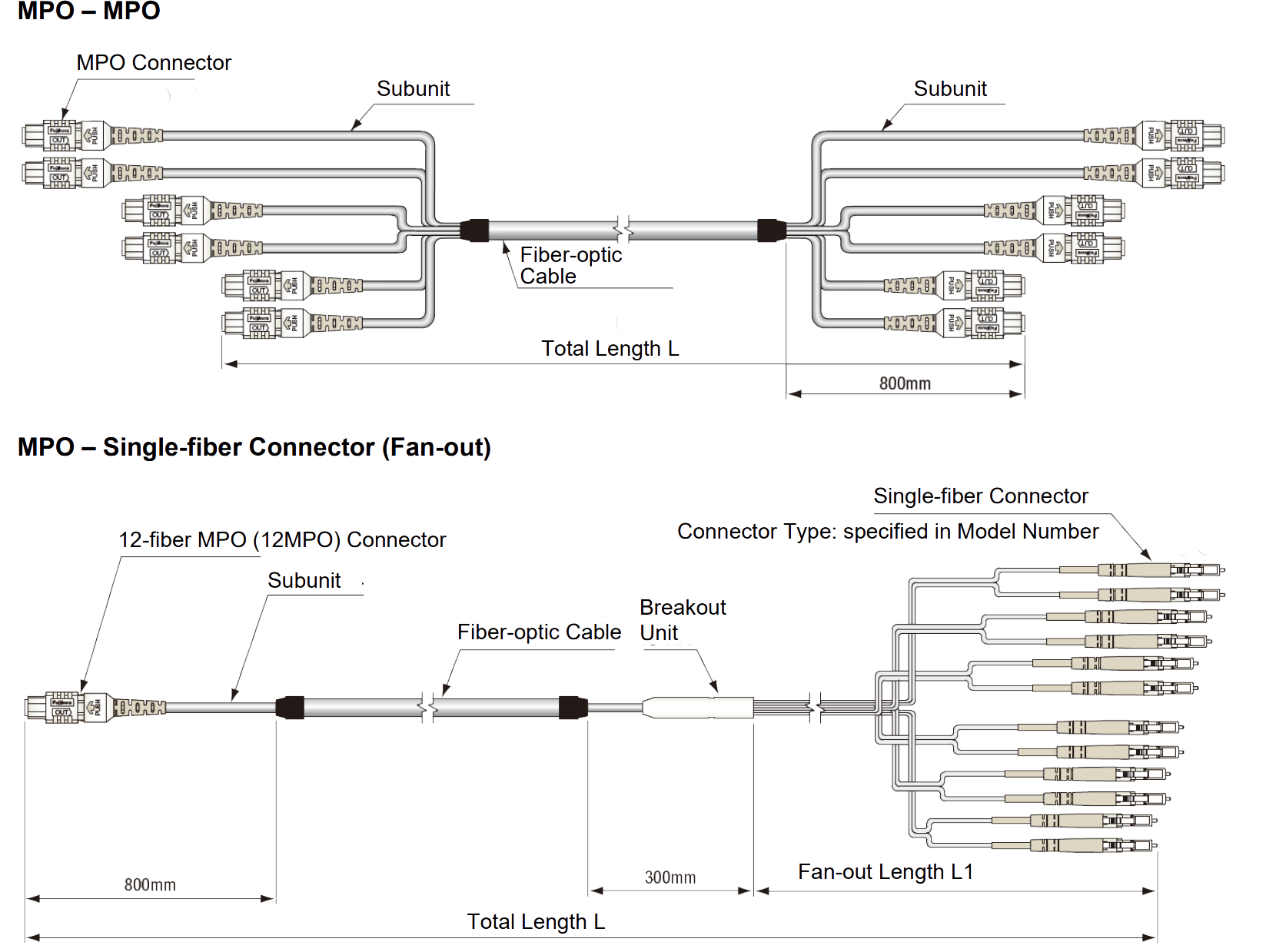

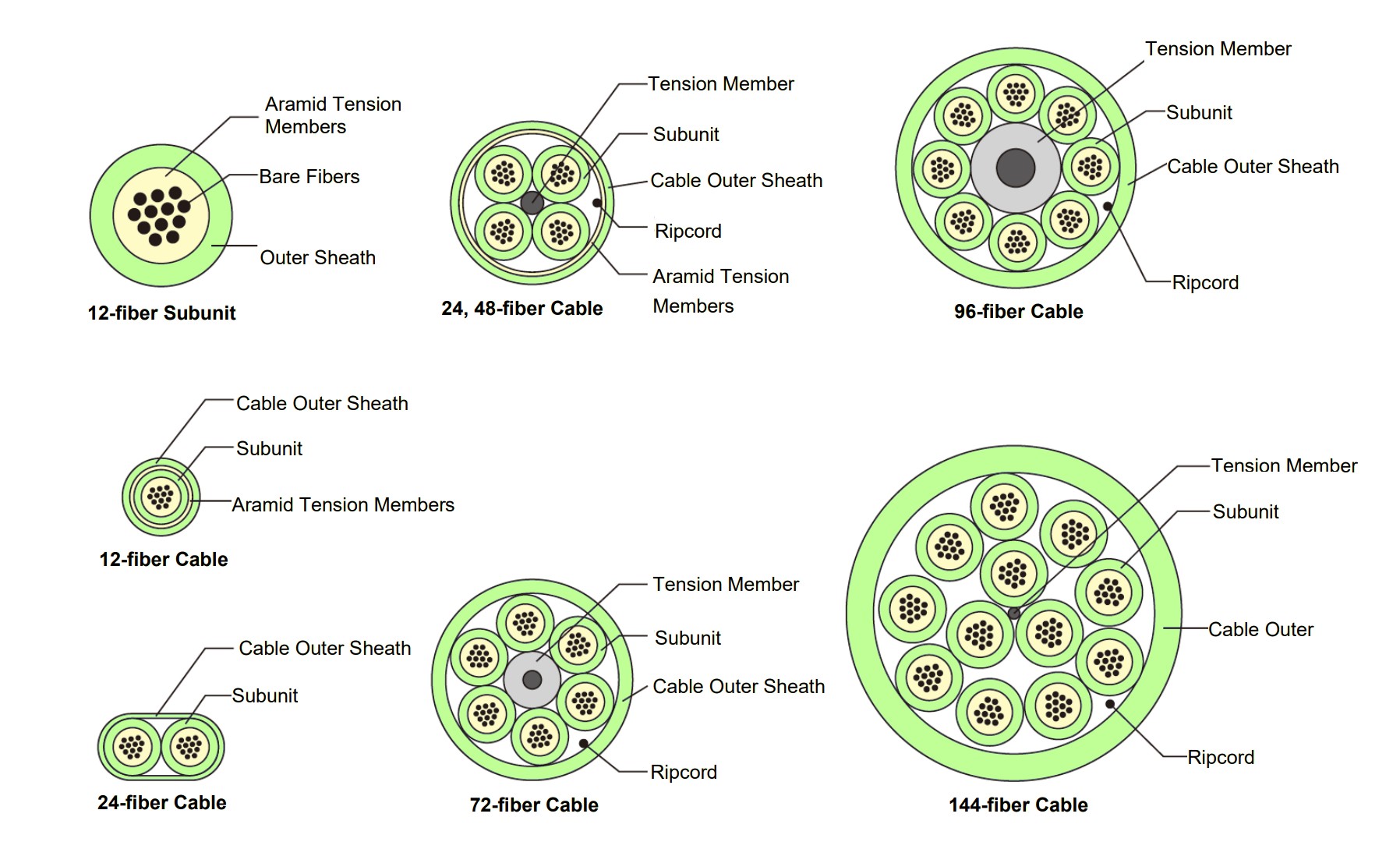

Product example, optical cable structure
 |  |
- AI GPU Clusters
- 400G Ethernet
- 800G Ethernet
- Cloud Computing
- Data Center Backbone
- Spine Switch Connections
- Leaf Switch Connections
- Optical Distribution Frames
- Enterprise Networks
- FTTx Central Office
- Telecom Backbone Networks
Flexible Custom Manufacturing Every network is different. HUALUE offers complete OEM and customized manufacturing services. Available options include: Fiber Count Customization Breakout Configuration Fan-out Length Pulling Eyes Color Coding Cable Labels Cable Length Connector Brand Options Packaging Solutions Whether your project requires hundreds or thousands of assemblies, HUALUE provides consistent production and dependable delivery. | Strong Manufacturing & Stable Supply Reliable delivery begins with reliable manufacturing. HUALUE operates modern production facilities supported by a stable optical fiber supply chain and strict process control. Our manufacturing advantages include: Professional MPO production lines Experienced polishing and testing teams Stable Bare Fiber supply Fast production scheduling OEM & ODM capability Worldwide logistics support Large inventory for standard products Our commitment to quality ensures every cable shipped performs consistently in mission-critical optical networks. |
Why More Customers Choose HUALUE
At HUALUE, we believe high-performance connectivity depends on more than excellent products. It requires dependable manufacturing, responsive support, and long-term supply reliability.
From raw optical fiber to finished MPO trunk cable assemblies, every stage of production is managed with precision to ensure consistent quality and rapid delivery.
Whether you are building a hyperscale data center, expanding a telecom backbone, or upgrading an enterprise network, HUALUE provides the high-density MPO trunk cable solutions you need—engineered for performance, manufactured for reliability, and ready for the future.
Benefits include:
Factory terminated and 100% tested
High-density cabling for space optimization
Low insertion loss for high-speed transmission
Faster installation with Plug-and-Play architecture
Reduced field labor and installation cost
Easy migration from 10G to 40G / 100G / 400G / 800G
Consistent factory quality
Flexible OEM customization
