OS2 |MTP to LC Fanout Cable | 40G / 100G Breakout Solution | HUALUE

Key Features

High-density multi-fiber connectivity

Available in 8 / 12 / 16 / 24 fiber configurations

Supports 40G / 100G / 400G high-speed transmission

Low insertion loss and low return loss

Factory pre-terminated for plug-and-play deployment

Available in OM3 / OM4 / OM5 / OS2 fiber types

Female / Male connector options available

Type A / Type B / Type C polarity options

LSZH / OFNP / Plenum / Armored jacket options

100% factory tested before shipment

Typical Applications

40G / 100G / 400G Ethernet

Hyperscale Data Centers

Cloud Computing Networks

AI / GPU Clusters

InfiniBand Networks

Telecom Core Networks

Spine-Leaf Architecture

Pre-Terminated Structured Cabling

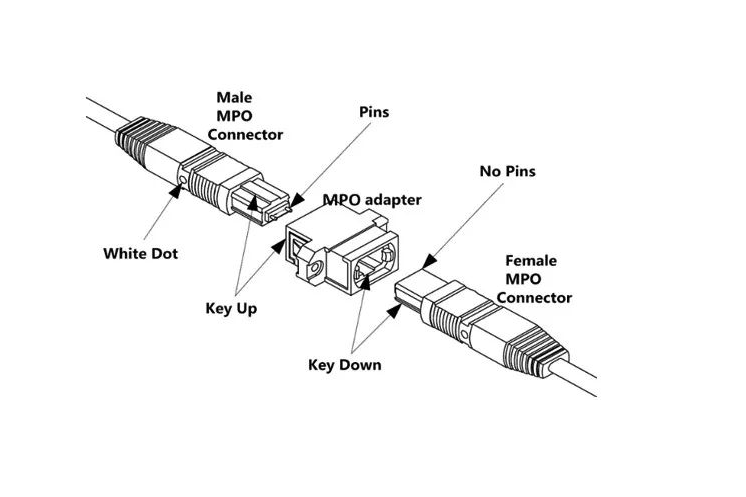

Connector Gender: Male vs Female

MTP connector gender is defined by guide pin structure:

Male: with guide pins

Female: without guide pins

Correct gender matching is essential for proper connection.

Male to Female = correct

Male to Male = cannot connect

Female to Female = unstable alignment

HUALUE provides both Male and Female MTP connectors to ensure compatibility with transceivers, cassettes, and structured cabling systems.

Polarity Options

Proper polarity ensures the transmit (Tx) signal reaches the receive (Rx) side correctly.

Type A (Straight)

Fiber 1 to Fiber 1, Fiber 2 to Fiber 2

Used for backbone trunk systems and cassette-based structured cabling.

Type B (Reversed)

Fiber 1 to Fiber 12, Fiber 2 to Fiber 11

Ideal for 40G / 100G parallel optics and direct transceiver interconnect.

Type C (Pair-Flipped)

Adjacent fiber pairs flipped

Used in specific duplex breakout and legacy polarity systems.

HUALUE supports all standard polarity configurations for accurate system design and deployment.

OM3 / OM4 / OM5 Multimode

Designed for short-reach high-speed transmission in data centers.

OM3: Cost-effective for 10G / 40G

OM4: Recommended for 40G / 100G

OM5: Optimized for SWDM applications

OS2 Singlemode

Designed for long-distance transmission and high-speed backbone networks.

Ideal for 100G DR / FR / LR

Suitable for campus and DCI links

Recommended for 400G singlemode deployment

MTP Trunk Cable

MTP to MTP backbone cable for high-density structured cabling.

Typical use:

Patch panel to patch panel

Spine to leaf

Data center backbone

Recommended configuration:

MTP-24 OS2 Female Type A APC LSZH Trunk Cable

MTP Patch Cord

Short-length MTP jumper for active equipment interconnection.

Typical use:

QSFP to patch panel

Switch to transceiver

Equipment port connection

Recommended configuration:

MTP-12 OM4 Female Type B UPC Patch Cord

MTP Fanout Cable

MTP to LC breakout cable for channel splitting.

Typical use:

40G to 4×10G

100G to 4×25G

400G to 8×50G

Recommended configuration:

MTP-12 OM4 Female Type B to 4×LC Duplex Fanout Cable

LSZH

Low smoke zero halogen jacket for indoor and data center use.

OFNP / Plenum

Fire-resistant jacket for plenum spaces and North American building codes.

Armored

Enhanced protection for harsh environments, raised floors, and industrial deployment.

HUALUE offers multiple jacket options based on project environment and installation requirements.

Quality Assurance

HUALUE MTP patch cords are manufactured under strict quality control standards to ensure reliable high-speed optical performance.

Each assembly is tested for:

Insertion Loss (IL)

Return Loss (RL)

End Face Geometry

Polarity Accuracy

Fiber Sequence

Connector Performance

Every cable is individually inspected and tested before shipment to ensure consistent optical performance and deployment reliability.

Cleaning & Protection

MTP connectors require strict end-face cleanliness to maintain stable optical performance.

HUALUE recommends:

Inspect before every insertion

Clean before every connection

Use MTP one-click cleaner

Keep dust caps installed when unused

Avoid end-face contamination during handling

Proper cleaning is essential for long-term MTP system stability.
