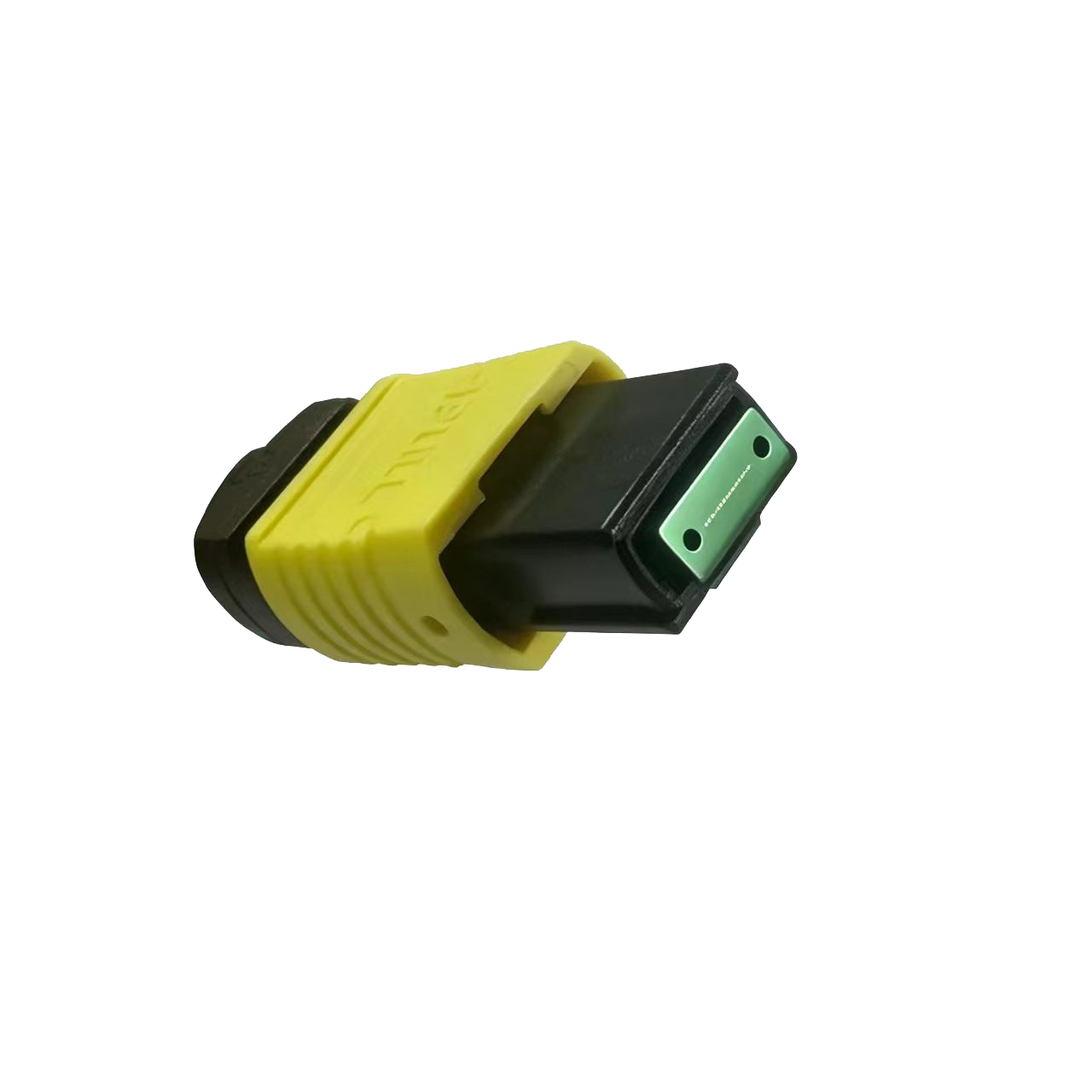

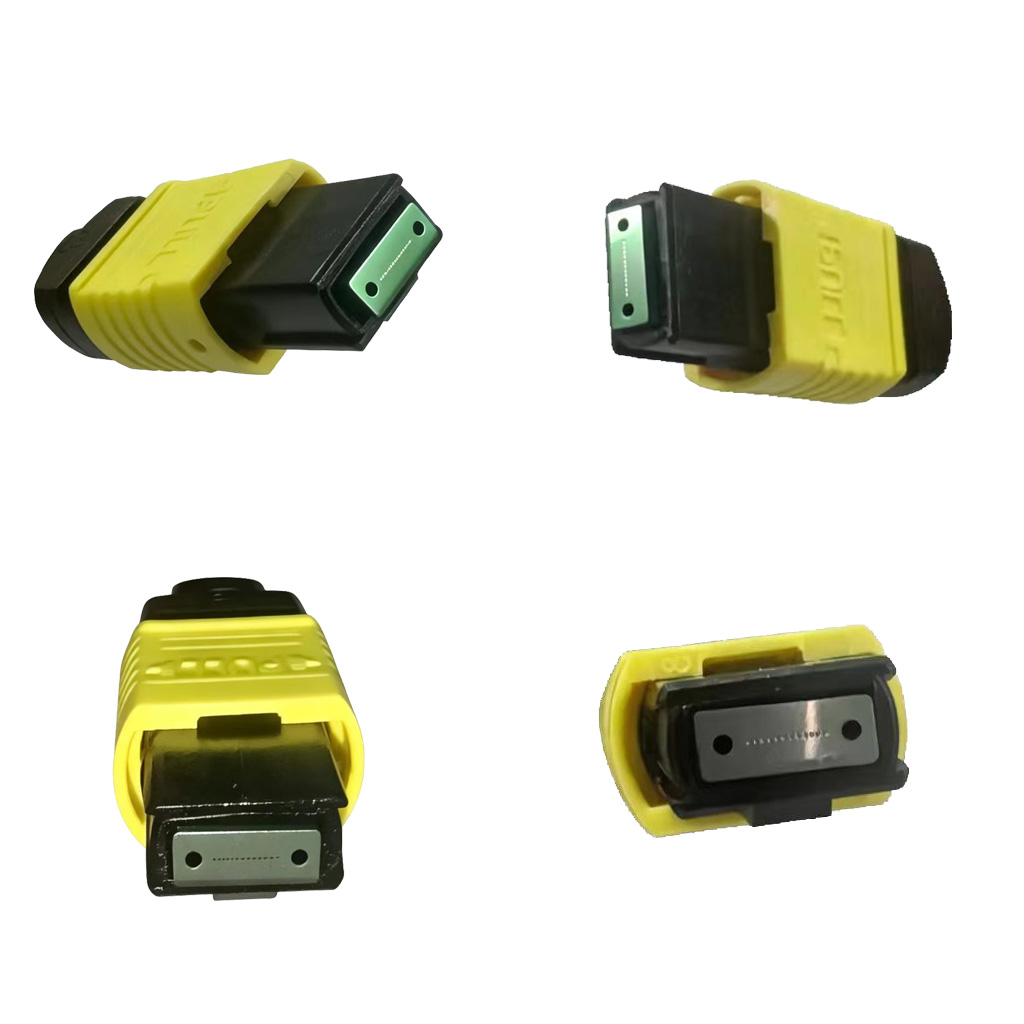

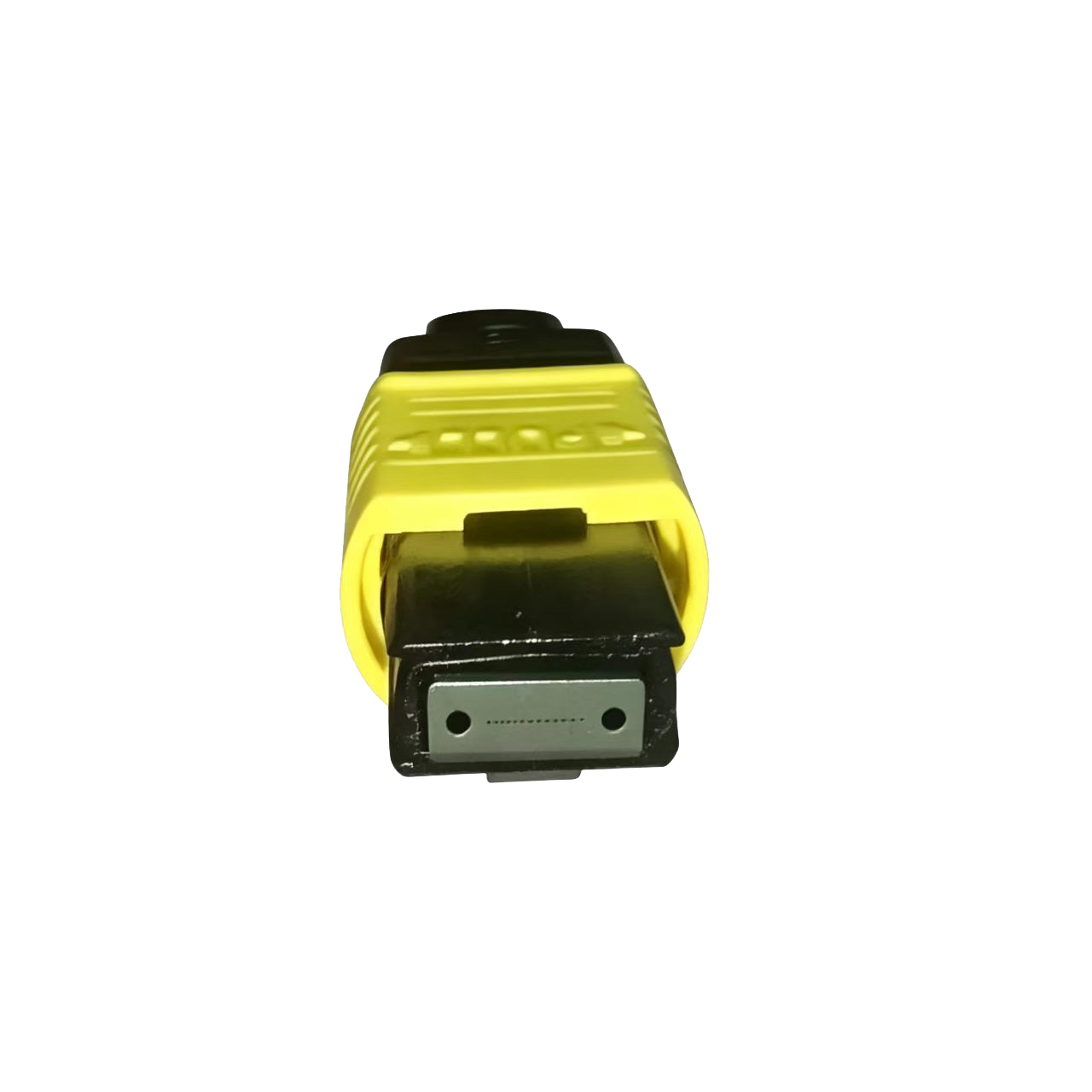

Non-Contact MPO Connector-MPO Trunk Cable
Non-Contact MPO Trunk Cable (Non-Contact MPO), featuring advanced AR anti-reflection coating and recessed fiber end-faces for true non-physical contact connection. With ultra-low insertion loss (≤0.15dB), high return loss (≥70dB), and 5-10x longer mating life (>2000 cycles), it outperforms traditional MPO in durability, dust resistance, and reliability. Ideal for 400G/800G/1.6T data centers, AI clusters, and high-density backbone cabling. Fully compatible with standard MPO interfaces.
Non-Contact MPO Trunk Cable: The Future of High-Speed Data Center Connectivity
As data centers scale to 400G, 800G, and 1.6T, traditional physical-contact MPO connectors face challenges like end-face scratching, contamination sensitivity, and limited mating cycles.
Non-Contact MPO Trunk Cable revolutionizes multi-fiber connectivity with recessed fiber end-faces + AR anti-reflection coating, delivering unmatched reliability, lower total cost of ownership (TCO), and easier maintenance for product managers and network architects.
 |  | |
 | ||
Features & Benefits
True Non-Contact Design: Creates a stable micro air gap during mating, eliminating physical friction between fiber end-faces.
AR Anti-Reflection Coating: Dramatically reduces Fresnel reflections for superior optical performance.
Extended Mating Life: ≥2,000 cycles – 5-10x longer than standard MPO.
Excellent Dust & Contamination Resistance: Less sensitive to dirt and particles, reducing cleaning frequency.
Ultra-Stable Performance: Insertion loss repeatability <0.01dB across all channels.
Lower Mating Force: Reduces mechanical stress on equipment and fibers.
Full Backward Compatibility: Seamlessly mates with standard MPO/MTP connectors.

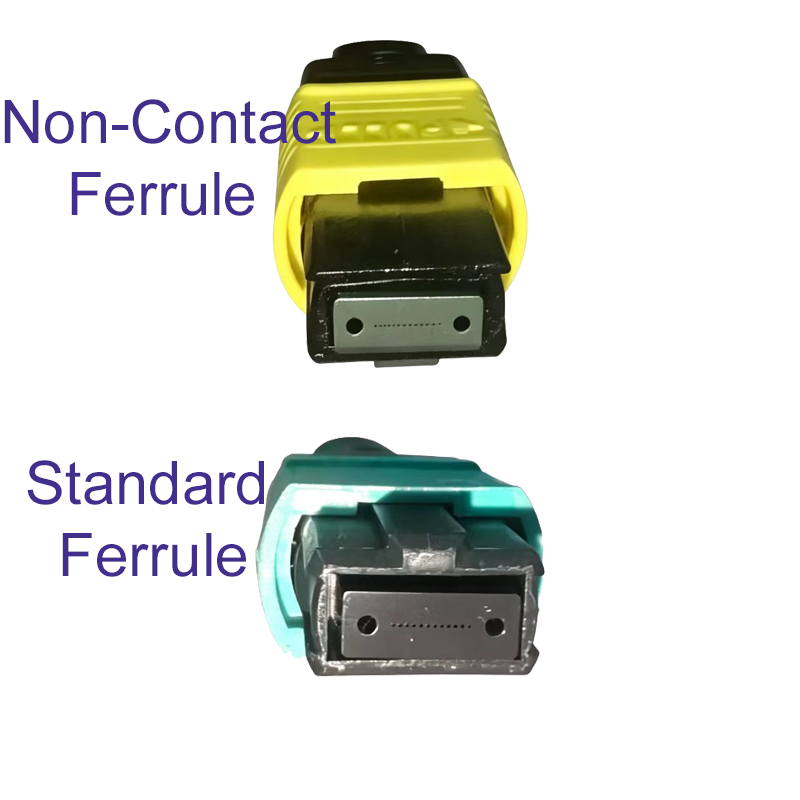

Non-Contact MPO vs Traditional MPO – Side-by-Side Comparison
| Feature | Traditional Contact MPO | Non-Contact MPO (Recommended | Value for Product Managers |
Connection Type | Physical end-face contact | Non-contact + AR coating | Minimizes end-face damage | |
| Insertion Loss (IL) | Typical 0.25–0.35d | ≤0.15dB (better) | Higher signal quality & reach | |
| Return Loss (RL) | ≥60dB (SM) | ≥70dB (SM, typical) | Lower reflections & noise | |
| Mating Cycles | 200–500 | ≥2,000 | Dramatically lower replacement costs | |
Dust Resistanc | Sensitive, frequent cleaning | Highly resistant | Reduced maintenance effort | |
Performance Consistency | Moderate | Excellent (<0.01dB variation) | More predictable deployments | |
Mating Forc | Higher | Lower | Protects transceivers & equipment | |
Best For | Standard density | High-frequency, ultra-dense, AI/HPC | Future-proof infrastructure |
Expanded Beam
Advantages
Lower Total Cost of Ownership
Although the initial investment may be higher, the reduction in maintenance, cleaning and replacement costs provides significant long-term savings.
Improved Network Availability
Stable optical performance minimizes downtime caused by contamination or connector wear.
Higher Reliability
Ideal for mission-critical applications requiring continuous operation.
Faster Deployment
Less connector cleaning simplifies field installation and reduces commissioning time.
Applications
HUALUE Non-Contact MPO Connectors are widely used in:
AI Data Centers Hyperscale Cloud Computing High Performance Computing (HPC) 400G Ethernet 800G Ethernet 1.6T Optical Networks Military Communication Aerospace | Industrial Automation Factory Ethernet Railway Communication Mining Networks Oil & Gas Outdoor FTTA Smart Grid Edge Data Centers |
Why Choose HUALUE?
HUALUE provides high-performance fiber optic connectivity solutions designed for next-generation communication networks.
Our advantages include:
Professional MPO/MTP manufacturing
Strict quality inspection
100% optical performance testing
Customized fiber solutions
Fast production and delivery
Global technical support
OEM & ODM service
Compliance with international standards
Every Non-Contact MPO Connector undergoes comprehensive optical testing before shipment to ensure stable insertion loss, return loss and long-term reliability.
