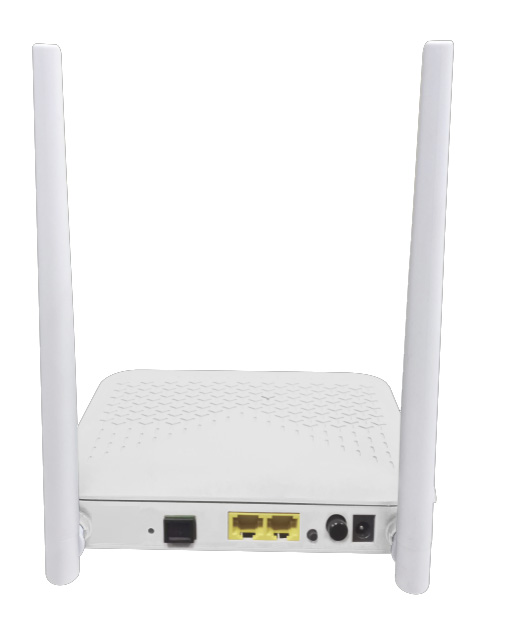

XPON 1GE+1FE+WIFI ONU

XPON 1GE+1FE+WiFi ONU is a type of Optical Network Unit (ONU) designed for Fiber to the Home (FTTH) networks. It provides dual-mode compatibility (XPON = GPON + EPON) and offers multiple services including high-speed internet via LAN ports and wireless access via built-in WiFi.

Product Detail

HL-GW201 meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home), SOHO broadband access, video surveillance and other requirements. It is based on mature and stable, cost-effective E/GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of IEEE802.3ah and ITU-TG.984.x, China Telecom E/GPON equipment technical requirements and other specifications.

Data:

· Auto-negotiation and MDI/MDIX auto-sensing

· Built-in layer-2 switch

· Advanced data features such as VLAN tag manipulation, classification, and filtering

Video:

· Supports video contents delivered in the form of data (by multicast or unicast).

Specifications

PON interface	· 1×G/EPON port (EPON PX20+ and GPON Class B+) · Receiving sensitivity: ≤ -28dBm · Transmitting optical power: 0~+4dB
Wavelength	Tx1310nm,Rx 1490nm
Optical interface	SC/PC connector
LAN interface	· 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector · MDI/MDIX automatically sense · Virtual switch based on 802.1Q VLAN · VLAN tagging/detagging per Ethernet port
WiFi interface	· Operating frequency: 2.400-2.4835GHz · Support MIMO, rate up to 300Mbps 2T2R,2×external antenna
LED	POWER, PON, LOS, GE, FE, WIFI, INTERNET
Power supply	AV110～255V→DC12V 1A
Dimension	235mm×160mm×77mm（L×W×H）
Net weight	0.22kg
Operating condition	Temperature: -5℃～45℃ Humidity: 10%～90%（non-condensing
Storing condition	Temperature: -30℃～+60℃ Humidity: 10%～90%（non-condensing）
