0.9mm Fiber Optic Pigtail | OS2 & OM3/OM4 SC LC FC ST Fiber Pigtails

HUALUE manufactures high-quality 0.9mm fiber optic pigtails

for FTTH, FTTx, data centers and telecom networks. Available in SC, LC, FC, ST, E2000, UPC/APC, OS2, OM3 and OM4 with low insertion loss and high return loss.

Features

Factory-Polished Connectors

Each connector is factory polished and 100% tested to ensure stable optical performance.

Premium Fiber Optical cable

Multiple Connector Types

Quality:100% Factory Tested

Every pigtail undergoes

Standards High-quality 0.9mm pigtails Telcordia GR-326-CORE IEC 61754 TIA-568.3-D RoHS / REACH UL / CE

Specifications

Applications

FTTH / FTTP Networks: Last-mile fiber termination and splicing.

Data Centers: High-density ODF and MPO-to-LC breakout solutions.

Telecom Rooms: Rack-mounted ODF and patch panel terminations.

5G Base Stations: Fronthaul and midhaul fiber connections.

CATV and Enterprise Networks: Reliable fiber distribution.

.......................................................................................................................................................................................

How to Choose the Best 0.9mm Pigtail

1.Connector Type: LC is the most popular due to its small form factor; SC is common in legacy systems.

2.Polish Type: APC for FTTH (low reflection); UPC for general use.

3.Fiber Type: OS2 (Single Mode) for long distance; OM4/OM5 (Multimode) for short-reach high-speed.

4.Length: 0.5m, 1m, 1.5m, or 2m (choose based on splice tray reserve length).

5.Quality Indicators: Look for 3D interferometer test reports and low insertion loss guarantees.

Pro Tip: Always choose pigtails with LSZH jackets for indoor use and verify end-face quality with a fiber scope before installation.

What is a 0.9mm Fiber Optic Pigtail?

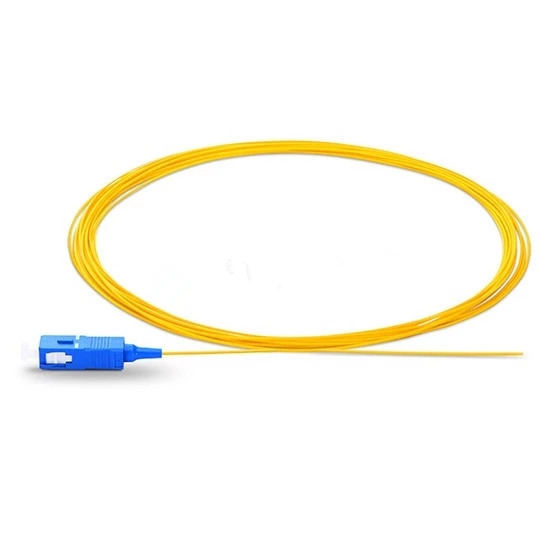

A 0.9mm pigtail is a short length of optical fiber with a factory-installed connector (such as LC, SC, FC, or ST) on one end and an unterminated bare fiber on the other. The 0.9mm tight buffer design provides mechanical protection while maintaining superior bend performance, making it ideal for fusion splicing inside ODFs, splice trays, and distribution boxes.

Compared to 2.0mm or 3.0mm pigtails, the 0.9mm version offers higher packing density and easier management in crowded panels.
