E2000 Fiber patchord--SM-MM-HUALUE

E2000 Fiber Patch Cord

E2000 Fiber Patch Cord is a premium optical fiber interconnect solution widely used in high-density and high-performance optical networks. The E2000 connector features an integrated shutter design that protects the ferrule from dust and contamination, ensuring long-term stability and reliable signal transmission.

It is commonly used in telecom central offices, DWDM systems, data centers, and FTTH networks where high precision and low signal loss are required.

Specifications

• Original R&M Connectors: 100% genuine R&M E2000 connectors with official authorization
• Spring-Loaded Shutter: Automatic protection against dust and laser exposure
• Low Insertion Loss: Typical ≤0.2dB (APC ≤0.3dB)
• High Return Loss: PC ≥50dB / UPC ≥55dB / APC ≥65dB
• Excellent Repeatability: ≤0.1dB after multiple matings
• Mechanical Keying: Prevents incorrect mating
• High Durability: Supports over 1000 mating cycles
• Flexible Customization: Simplex/Duplex, various lengths, diameters and jacket materials (LSZH/PVC/OFNR)

Applications

• Telecommunication Networks
• Data Centers and High-Density Cabling
• Fiber To The Home (FTTH)
• 5G Base Stations and Distributed Antenna Systems
• CATV and Broadcasting Networks
• Enterprise and Campus Cabling Systems
• Testing Equipment and Instruments


................................................................................................................................................................................................

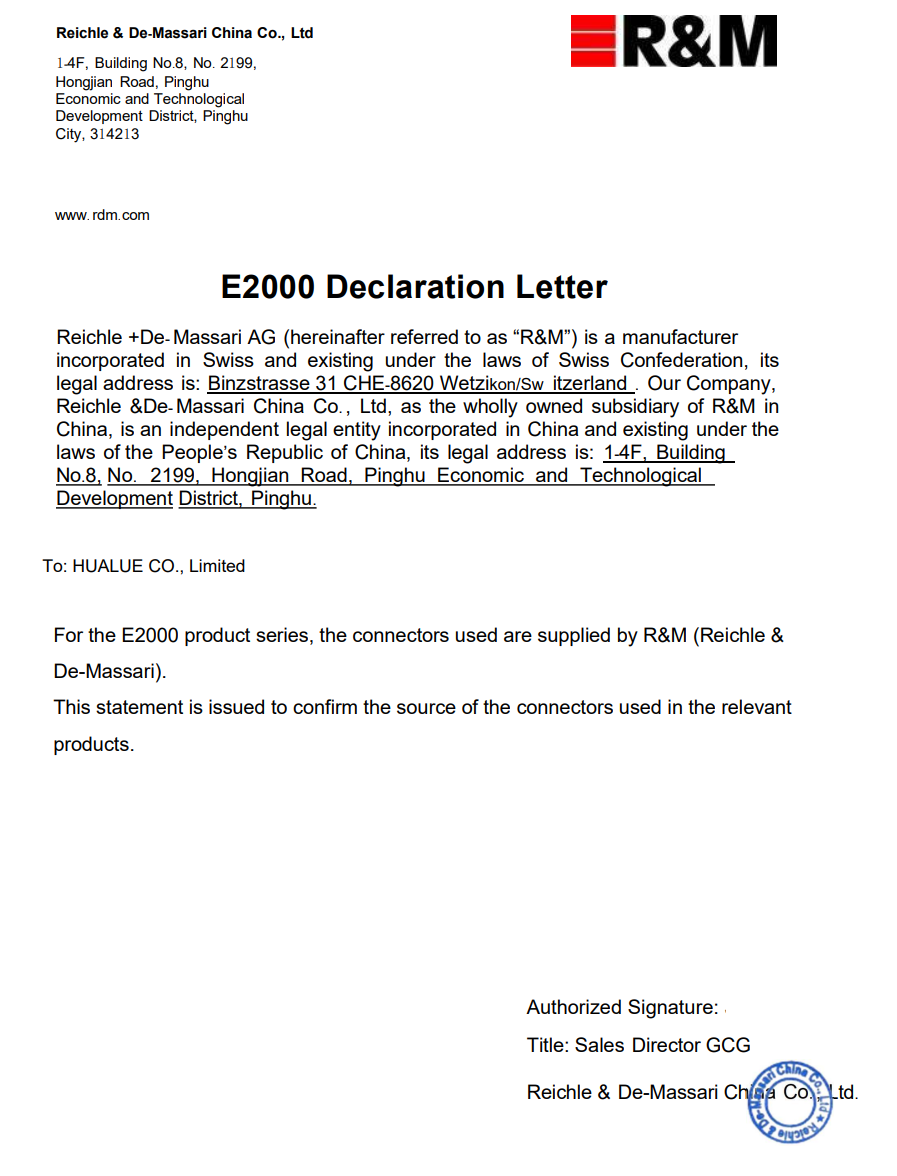

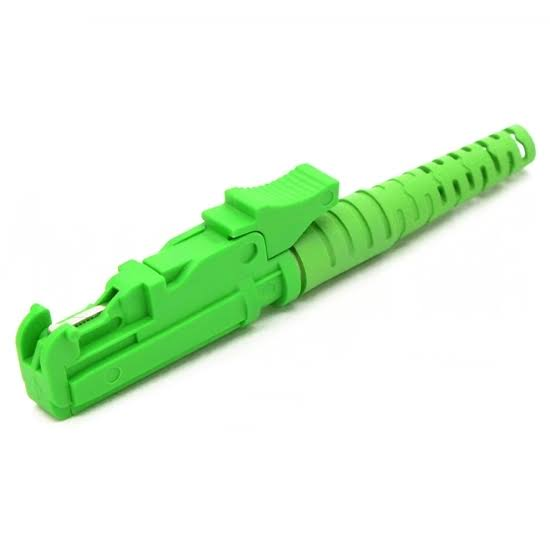

E2000 Fiber Connector/R&M (Reichle & De-Massari) &HUALUE

E2000 fiber connector is a high-precision original optical interface designed for telecom and data center applications. It features an integrated shutter system and low insertion loss performance, making it a widely recognized standard in high-end fiber optic networks.

HUALUE supplies E2000 products based on the original design standard and is officially authorized by R&M. This authorization ensures full compliance with OEM specifications, stable quality control, and reliable compatibility with global telecom systems.

With this partnership, HUALUE delivers trusted and high-quality E2000 fiber solutions for carriers, integrators, and data center infrastructure projects worldwide.
